SKU: 6009ZZNR/2AS-NTN

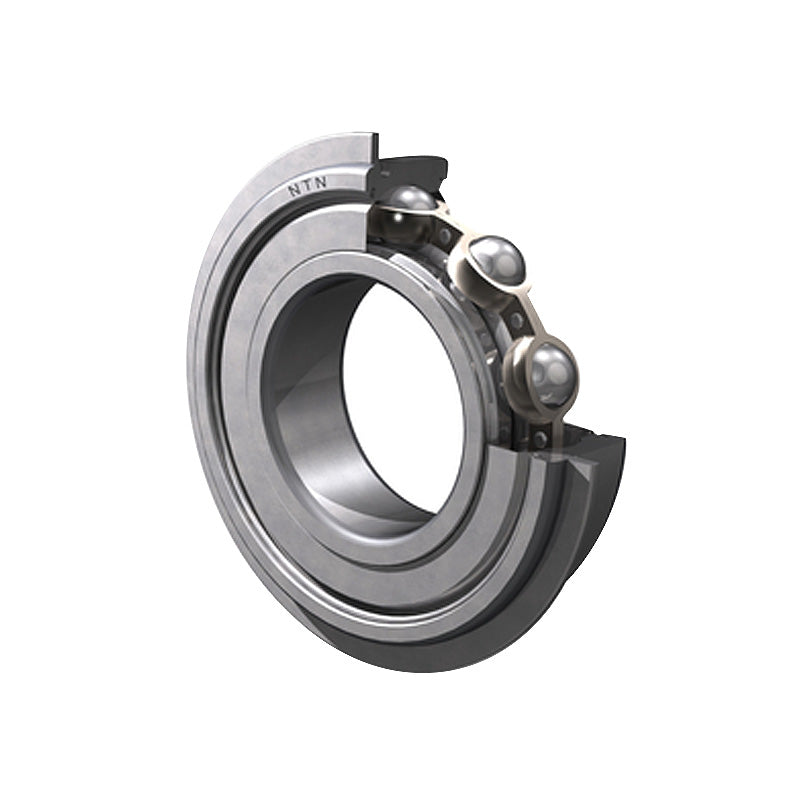

NTN 6009ZZNR/2AS Metal Shielded Type Deep Groove Ball Bearing with Snap Ring 45x75x16mm
Equivalent to: 6009ZZNRCM 6009ZZNR 6009ZZNR 60092ZNR 6009ZZNR 60092ZRNR 6009ZZENR 6009FFNR 6009DDNR 6009DDCNR 6009KDDCNR EL452ZNR EL45ZZNR 9109KDDG 4773L09 109KSFFG
In stock
Price Break
Description
|
Metal Shielded Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured with metal shields offering some protection against mechanical damage and serving to retain the lubricant in the sealed for life bearing. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
Note: These bearings are supplied pre-filled with grease, "/2AS" refers to Shell Alvania Grease S2
Equivalent: 6009ZZNRCM 6009ZZNR 6009ZZNR 60092ZNR 6009ZZNR 60092ZRNR 6009ZZENR 6009FFNR 6009DDNR 6009DDCNR 6009KDDCNR EL452ZNR EL45ZZNR 9109KDDG 4773L09 109KSFFG
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 75mm
- Width:
- 16mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
| --- | Bearing dimensions |
|---|---|
| d | 45mm |
| D | 75mm |
| B | 16mm |
| r<sub>s</sub> min | 1mm |
| --- | Loads angles and speeds |
| rNS Min. | 0.5 kN |
| C<sub>r</sub> | 23.2 kN |
| C<sub>or</sub> | 15.1 kN |
| C<sub>u</sub> | 1.16 kN |
| f<sub>0</sub> | 15.3 rpm |
| Grease | 9200 rpm |
| --- | Fitting Dimensions |
| Oil | 11000 rpm |
| D<sub>1</sub> Max. | 71.83mm |
| a Max. | 2.49mm |
| b Min. | 1.9mm |
| r<sub>o</sub> Max. | 0.6mm |
