SKU: 6009NR-MB

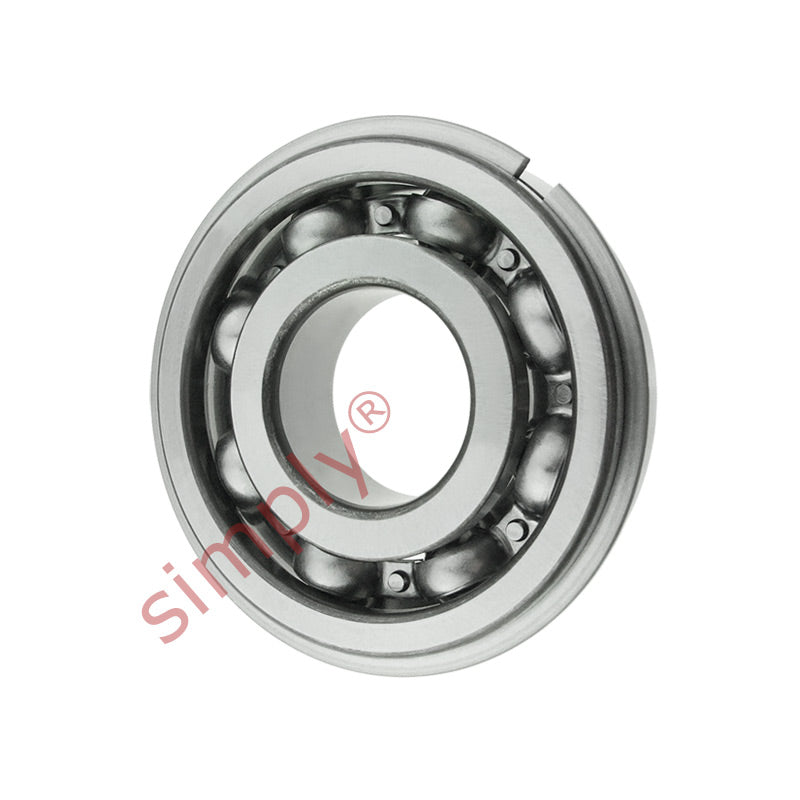

6009NR Deep Groove Ball Bearing with Snap Ring 45x75x16mm
6009NR Deep Groove Ball Bearing with Snap Ring 45x75x16mm
Regular price
$56.47
ex VAT
Regular price
Sale price
$56.47
ex VAT
In stock
Price Break
10+
$50.26
19+
$47.43
29+
$46.87
39+
$46.31
49+
$45.74
74+
$45.18
99+
$42.35
199+
$41.79
249+
$41.22
499+
$40.66
999+
$39.53
Couldn't load pickup availability
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 75mm
- Width:
- 16mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 45mm |
|---|---|
| D | 75mm |
| B | 16mm |
| Dyamic load C | 22.1 kN |
| Static load Co | 14.6 kN |
| Fatigue load limit Pu | 0.64 kN |
| Reference speed | 20000 rpm |
| Limiting speed | 12000 rpm |
| Mass | 0.25 kg |
| d1 | 54.8mm |
| d2 | 65.3mm |
| D2 | 67.8mm |
| r1r2 min | 1mm |
| da min | 50.8 |
