SKU: 6009LLUNR/2AS-NTN

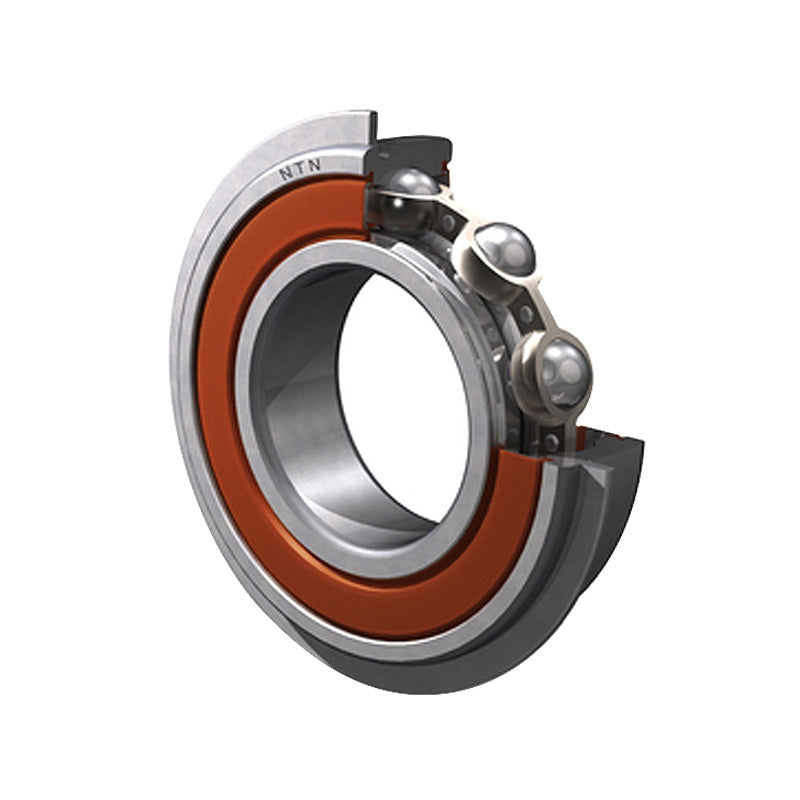

NTN 6009LLUNR/2AS Contact Rubber Sealed Type Deep Groove Ball Bearing with Snap Ring 45x75x16mm
Equivalent to: 6009LLUNRCM 6009LLUNR 6009NSENR 6009DUNR 6009RSNR 6009RSHNR 6009PNR 6009RSRNR 6009LUNR 60092NSENR 6009DDUNR 60092RSNR 6009-2RSNR 60092RS1NR 60092RSHNR 6009PPNR 60092RSRNR 6009LLUNR 6009RS2NR 60092RS2NR 60092RSLNR 6009LFSNR 6009EENR 9109NPPG 109KSZZG Z4993L09
In stock
Price Break
Description
Contact Rubber Sealed Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame, These deep groove ball bearings can sustain radial, axial or composite loads and because of its simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with the inner ring providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side.
Benefits: High-running accuracy and high-speed operation, snap ring location in housings, excellent grease sealing at low speeds, excellent protection against dust and water.
Note: These bearings are supplied pre-filled with grease, "/2AS" refers to Shell Alvania Grease S2
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 75mm
- Width:
- 16mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
| --- | Bearing dimensions |
|---|---|
| d | 45mm |
| D | 75mm |
| B | 16mm |
| r<sub>s</sub> min | 1mm |
| --- | Loads angles and speeds |
| rNS Min. | 0.5 kN |
| C<sub>r</sub> | 23.2 kN |
| C<sub>or</sub> | 15.1 kN |
| C<sub>u</sub> | 1.16 kN |
| f<sub>0</sub> | 15.3 |
| --- | Fitting Dimensions |
| Speed | 5400rpm |
| D<sub>1</sub> Max. | 71.83mm |
| a Max. | 2.49mm |
| b Min. | 1.9mm |
| r<sub>o</sub> Max. | 0.6mm |
