SKU: 6009-ZZE-NACHI

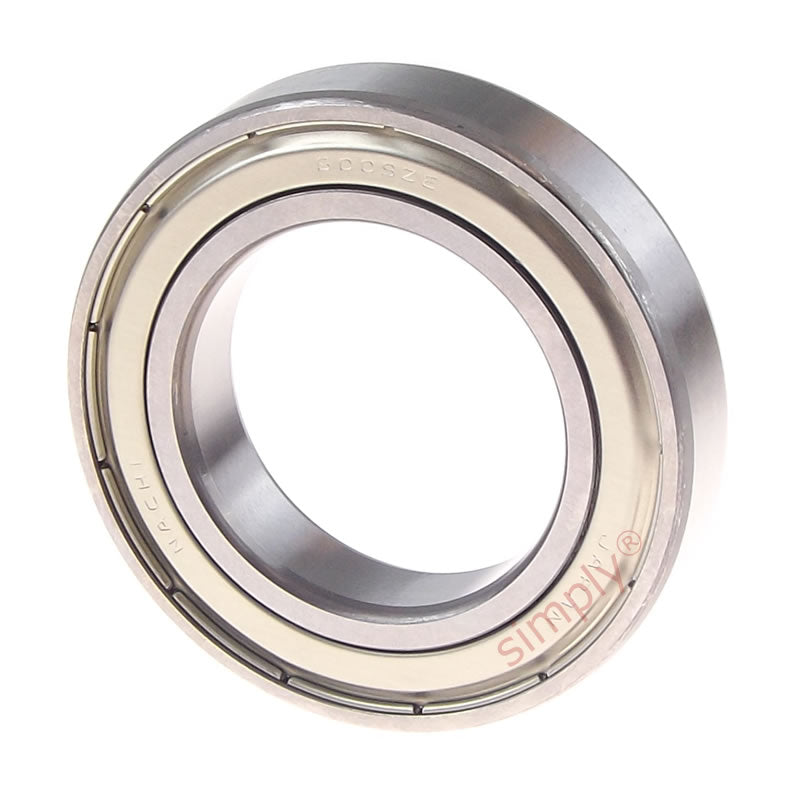

NACHI 6009ZZE Metal Shielded Deep Groove Ball Bearing 45x75x16mm
NACHI 6009ZZE Metal Shielded Deep Groove Ball Bearing 45x75x16mm
Regular price
$16.96
ex VAT
Regular price
Sale price
$16.96
ex VAT
Equivalent to: 6009ZZ 60092Z 6009.2Z 6009KDD 6009DD 60092ZR 6009FF
In stock
Price Break
5+
$8.01
9+
$7.56
19+
$7.47
29+
$7.38
49+
$7.29
74+
$7.20
99+
$6.75
199+
$6.66
249+
$6.57
499+
$6.48
999+
$6.30
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
Equivalent: 6009ZZ 60092Z 6009.2Z 6009KDD 6009DD 60092ZR 6009FF
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 75mm
- Width:
- 16mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| Inside Diameter d | 45mm |
|---|---|
| Outside Diameter D | 75mm |
| Width B | 16mm |
| Min radius r | 1mm |
| Dynamic load | 20900 kN |
| Static load | 15200 kN |
| Max speed | 9200 rpm |
| da min | 50mm |
| Da max | 70mm |
| ra max | 1mm |
| Weight | 0.246 kg |
