SKU: 6008LLUNR/2AS-NTN

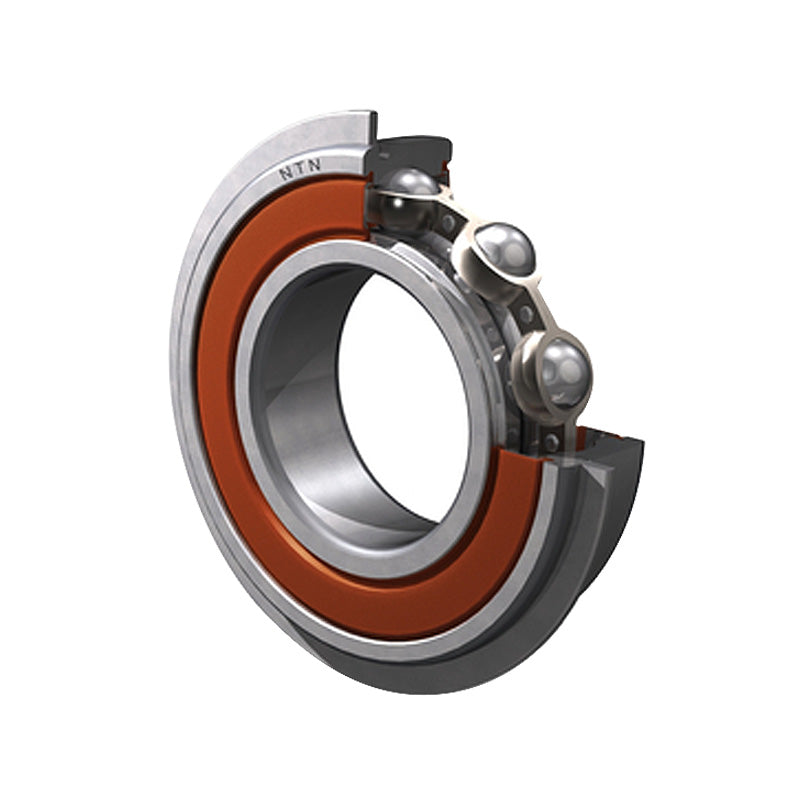

NTN 6008LLUNR/2AS Contact Rubber Sealed Type Deep Groove Ball Bearing with Snap Ring 40x68x15mm
Equivalent to: 6008LLUNRCM 6008LLUNR 6008NSENR 6008DUNR 6008RSNR 6008RSHNR 6008PNR 6008RSRNR 6008LUNR 60082NSENR 6008DDUNR 60082RSNR 6008-2RSNR 60082RS1NR 60082RSHNR 6008PPNR 60082RSRNR 6008LLUNR 6008RS2NR 60082RS2NR 60082RSLNR 6008LFSNR 6008EENR 9108NPPG 108KSZZG Z4993L08
In stock
Price Break
Description
Contact Rubber Sealed Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame, These deep groove ball bearings can sustain radial, axial or composite loads and because of its simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with the inner ring providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side.
Benefits: High-running accuracy and high-speed operation, snap ring location in housings, excellent grease sealing at low speeds, excellent protection against dust and water.
Note: These bearings are supplied pre-filled with grease, "/2AS" refers to Shell Alvania Grease S2
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 68mm
- Width:
- 15mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
| --- | Bearing dimensions |
|---|---|
| d | 40mm |
| D | 68mm |
| B | 15mm |
| r<sub>s</sub> min | 1mm |
| --- | Loads angles and speeds |
| rNS Min. | 0.5 kN |
| C<sub>r</sub> | 18.6 kN |
| C<sub>or</sub> | 11.5 kN |
| C<sub>u</sub> | 0.89 kN |
| f<sub>0</sub> | 15.2 |
| --- | Fitting Dimensions |
| Speed | 6100rpm |
| D<sub>1</sub> Max. | 64.82mm |
| a Max. | 2.49mm |
| b Min. | 1.9mm |
| r<sub>o</sub> Max. | 0.6mm |
