SKU: 6007-2RS-CDX

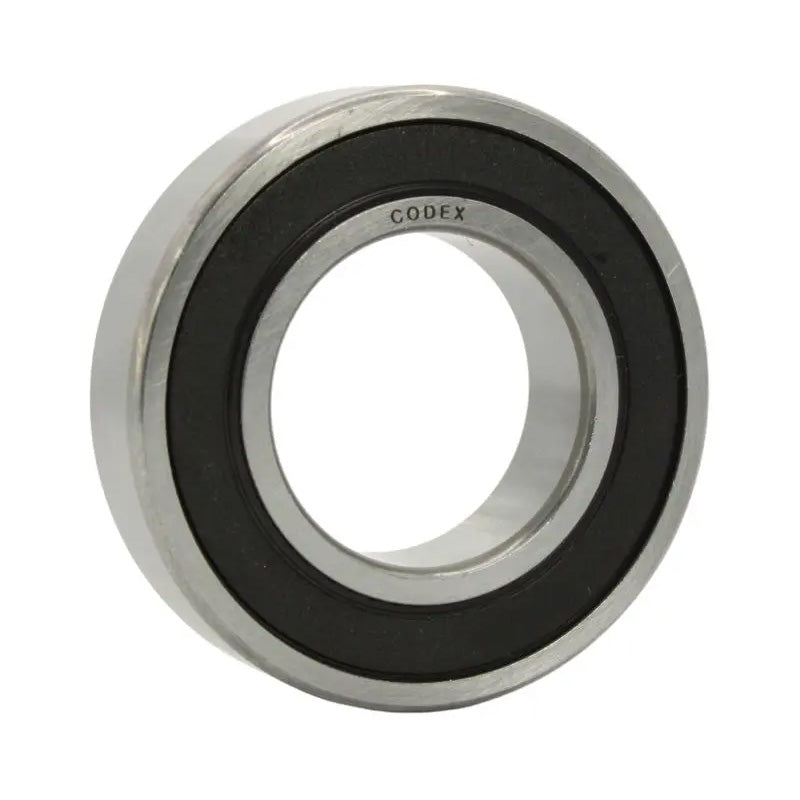

Codex 60072RS Rubber Sealed Deep Groove Ball Bearing 35x62x14mm
Codex 60072RS Rubber Sealed Deep Groove Ball Bearing 35x62x14mm
Regular price
$14.38
ex VAT
Regular price
Sale price
$14.38
ex VAT
Equivalent to: 60072RS 60072RSH 60072RS1 60072RSR 60072RSL 6007LFS 6007EE 6007DU 6007LLU EL352RS 6007PP 9107PP 107KSZZ 993L07 6107KK 10L35
In stock
Price Break
4+
$6.79
10+
$6.41
20+
$6.33
30+
$6.26
50+
$6.18
75+
$6.10
100+
$5.72
200+
$5.65
250+
$5.57
500+
$5.49
1000+
$5.34
Share this product
Description
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
Equivalent: 60072RS 60072RSH 60072RS1 60072RSR 60072RSL 6007LFS 6007EE 6007DU 6007LLU EL352RS 6007PP 9107PP 107KSZZ 993L07 6107KK 10L35
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 62mm
- Width:
- 14mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 35mm |
|---|---|
| D | 62mm |
| B | 14mm |
| Dynamic load C | 16.8 kN |
| Static load Co | 10.2 kN |
| Fatigue load limit Pu | 0.44 |
| Reference speed | 24000 rpm |
| Limiting speed | 7000 rpm |
| Weight | 0.16 kg |
| d1 | 43.8mm |
| D2 | 55.6mm |
| r1r2 | 1mm |
| da min | 39.6mm |
| Da max | 57.4mm |
| ra max | 1mm |
| Calc factor kr | 0.025 |
| Calc factor Cor f0 | 15 |
