SKU: 6006-2Z/C2-SKF

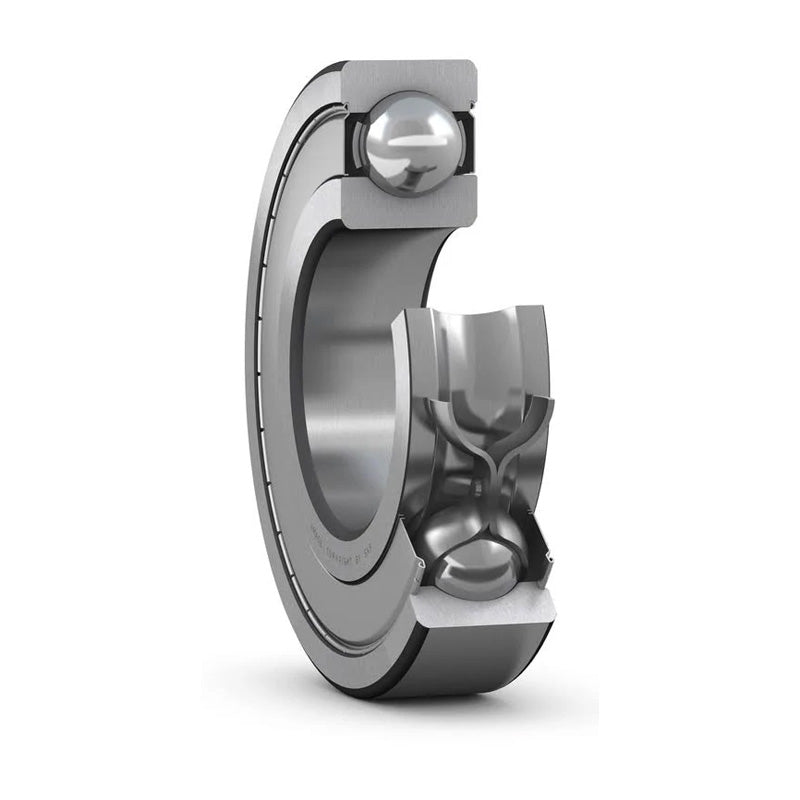

SKF 60062ZC2 Metal Shielded Deep Groove Ball Bearing 30x55x13mm
SKF 60062ZC2 Metal Shielded Deep Groove Ball Bearing 30x55x13mm
Regular price
$22.24
ex VAT
Regular price
Sale price
$22.24
ex VAT
Equivalent to: 6006ZZEC2 6006ZZC2 6006.2ZC2 6006KDDC2 6006DDC2 60062ZRC2 6006FFC2
In stock
Price Break
4+
$10.50
10+
$9.91
20+
$9.79
30+
$9.68
50+
$9.56
75+
$9.44
100+
$8.85
200+
$8.73
250+
$8.61
500+
$8.50
1000+
$8.26
Share this product
Description
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 6006ZZEC2 6006ZZC2 6006.2ZC2 6006KDDC2 6006DDC2 60062ZRC2 6006FFC2
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 55mm
- Width:
- 13mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C2
Technical
Technical
| d | 30mm |
|---|---|
| D | 55mm |
| B | 13mm |
| Dynamic load C | 13.8 kN |
| Static load Co | 8.3 kN |
| Fatigue load limit Pu | 0.355 kN |
| Reference speed | 28000 rpm |
| Limiting speed | 14000 rpm |
| Weight | 0.12 kg |
| d1 | 38.2mm |
| D2 | 49mm |
| r1r2 min | 1mm |
| da min | 34.6mm |
| da max | 38.1mm |
| Da max | 50.4mm |
| ra max | 1mm |
| Calculation factor kr | 0.025 |
| Calculation factor f0 | 15 |
