SKU: 6005-2RS-CDX

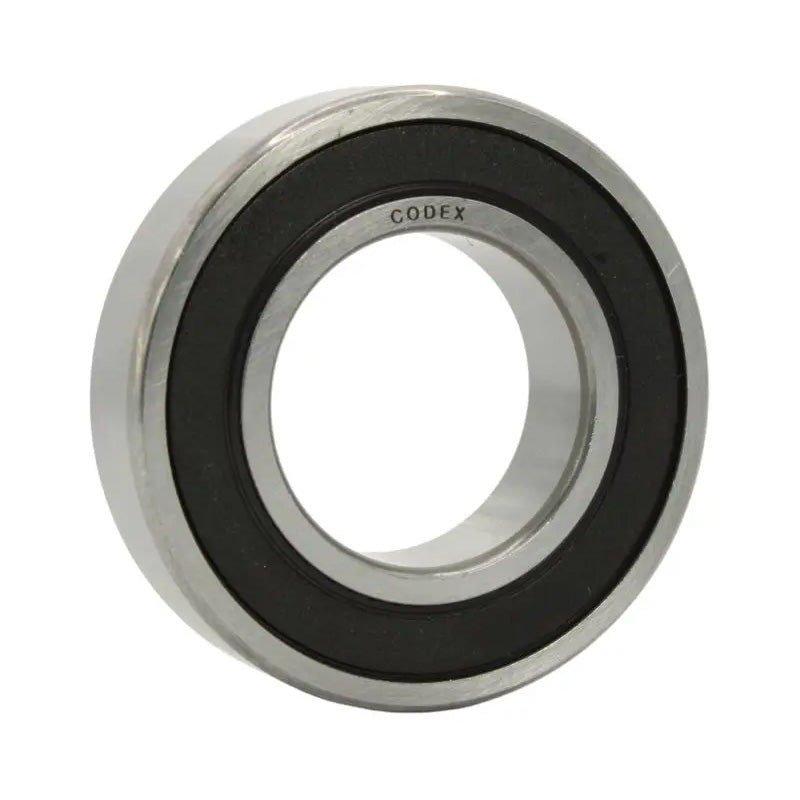

Codex 60052RS Rubber Sealed Deep Groove Ball Bearing 25x47x12mm
Codex 60052RS Rubber Sealed Deep Groove Ball Bearing 25x47x12mm
Regular price
$10.42
ex VAT
Regular price
Sale price
$10.42
ex VAT
Equivalent to: 60052RS 60052RSH 60052RS1 60052RSR 60052RSL 6005LFS 6005EE 6005DU 6005LLU EL252RS 6005PP 9105PP 105KSZZ 993L05 6105KK 10L25
In stock
Price Break
4+
$4.92
10+
$4.64
20+
$4.59
30+
$4.53
50+
$4.48
75+
$4.42
100+
$4.15
200+
$4.09
250+
$4.04
500+
$3.98
1000+
$3.87
Share this product
Description
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
Equivalent: 60052RS 60052RSH 60052RS1 60052RSR 60052RSL 6005LFS 6005EE 6005DU 6005LLU EL252RS 6005PP 9105PP 105KSZZ 993L05 6105KK 10L25
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 47mm
- Width:
- 12mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 25mm |
|---|---|
| D | 47mm |
| B | 12mm |
| Dynamic load C | 11.9 kN |
| Static load Co | 6.55 kN |
| Fatigue load limit Pu | 0.275 |
| Reference speed | 32000 rpm |
| Limiting speed | 9500 rpm |
| Weight | 0.08 kg |
| d1 | -mm |
| D2 | 42.2mm |
| r1r2 | 0.6mm |
| da min | 28.2mm |
| Da max | 43.8mm |
| ra max | 0.6mm |
| Calc factor kr | 0.025 |
| Calc factor Cor f0 | 14 |
