SKU: 60-3-SYN-NO12-RENOLD
Renold Synergy 60-3-NO12 ANSI / AS Triplex Chain Single Cranked Cottered Link 3/4 inch Pitch
Renold Synergy 60-3-NO12 ANSI / AS Triplex Chain Single Cranked Cottered Link 3/4 inch Pitch
Regular price
$133.74
ex VAT
Regular price
Sale price
$133.74
ex VAT
In stock
Price Break
10+
$119.03
19+
$112.34
29+
$111.00
39+
$109.67
49+
$108.33
74+
$106.99
99+
$100.31
199+
$98.97
249+
$97.63
499+
$96.29
999+
$93.62
Couldn't load pickup availability
Description
Description

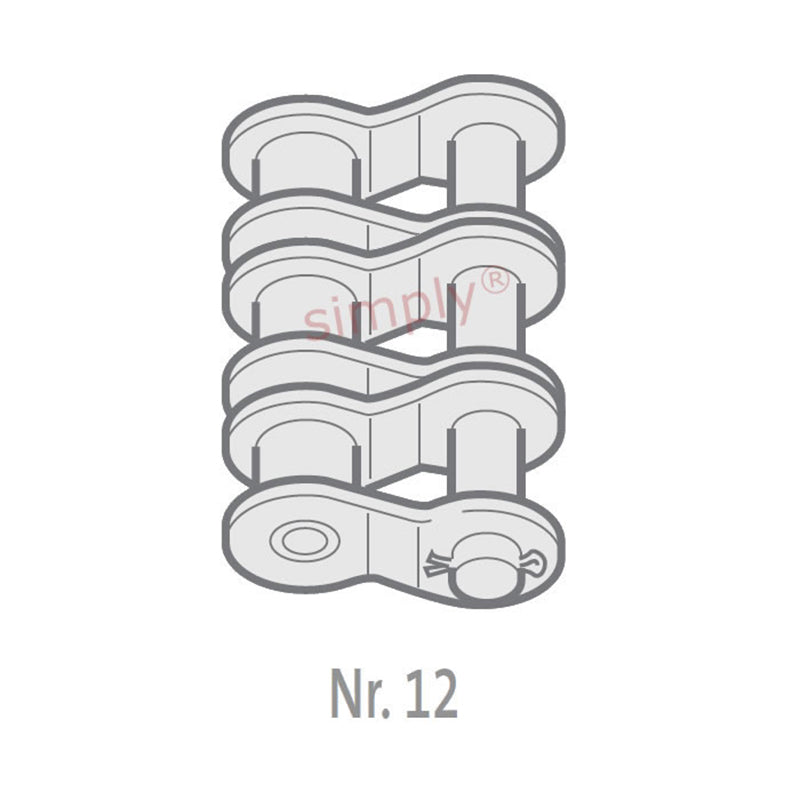

| Renold No. 12 ANSI Triplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 19.05mm = 0.75 (3/4) inch
Technical
Technical
| Pitch (A) | 0.75 inch |
|---|---|
| Pitch (A) | 19.05mm |
| Inside Width min (B) | 12.57mm |
| Roller Diameter max (C) | 11.91mm |
| Plate Height max (D) | 17.5mm |
| Plate Width Inner max (E) | 2.45mm |
| Plate Width Outer max (F) | 2.45mm |
| Pin Diameter max (G) | 5.94mm |
| Pin Length max (H2) | 70.9mm |
| Connecting Link Extension max (J) | 2.6mm |
| Transverse Pitch nom (K) | 22.78mm |
| ISO606 Tensile Strength min | 93900 N |
| Weight | 0.01kg/m |
