SKU: 60/28LLUC3/2AS-NTN

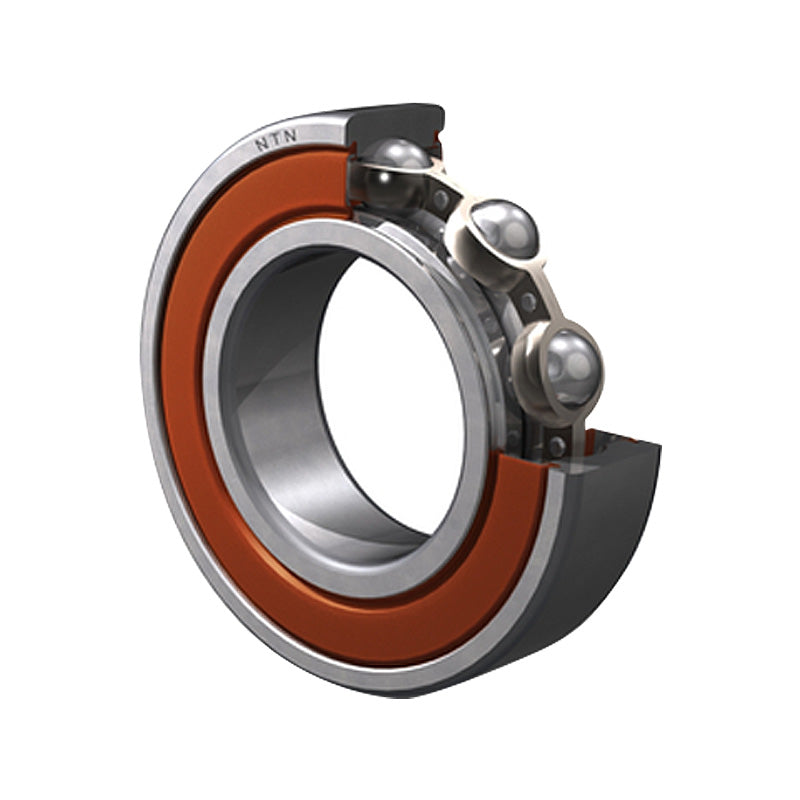

NTN 60/28LLUC3/2AS Contact Rubber Sealed Type Deep Groove Ball Bearing 28x52x12mm
NTN 60/28LLUC3/2AS Contact Rubber Sealed Type Deep Groove Ball Bearing 28x52x12mm
Regular price
$24.77
ex VAT
Regular price
Sale price
$24.77
ex VAT
In stock
Price Break
5+
$24.52
10+
$23.53
20+
$23.04
50+
$22.29
100+
$21.80
500+
$20.56
1000+
$17.34
Couldn't load pickup availability
Description
Description
Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of its simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with the inner ring.
Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water.
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 28mm
- Outside Diameter:
- 52mm
- Width:
- 12mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
Technical
| d | 28mm |
|---|---|
| D | 52mm |
| B | 12mm |
| rs - Min Fillet Radius | 0.6mm |
| Radial Clearance Class | C3 |
| Dynamic Load Rating | 13.8 kN |
| Static Load Rating | 7.4 kN |
| Limiting Speed | 8400 rpm |
| Weight | 0.098kg |
