SKU: 60-2-SYN-NO30-RENOLD

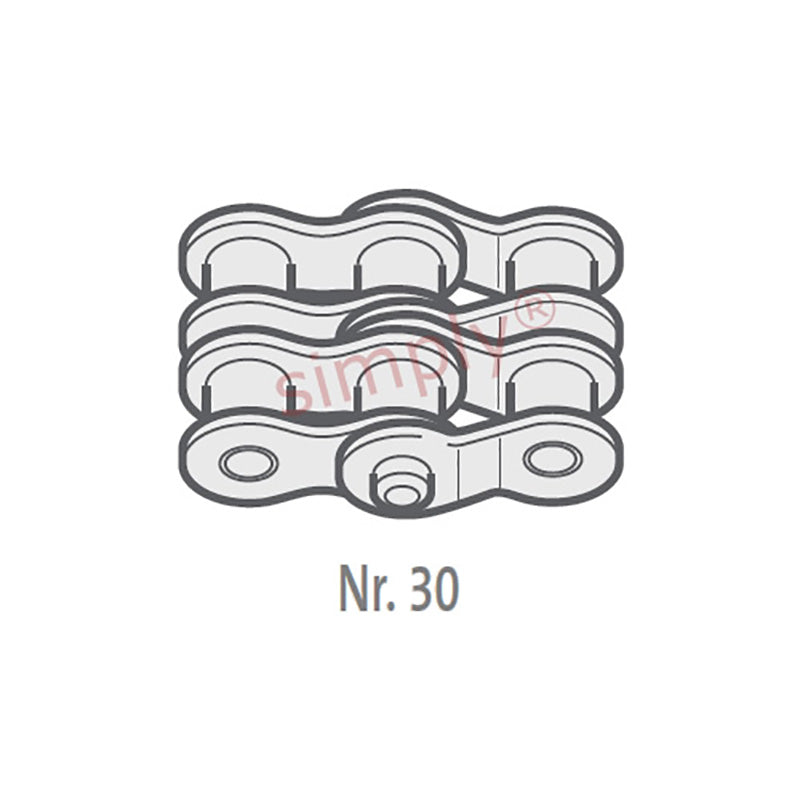

Renold Synergy 60-2-NO30 ANSI / AS Duplex Chain Double Cranked Link 3/4 inch Pitch
Renold Synergy 60-2-NO30 ANSI / AS Duplex Chain Double Cranked Link 3/4 inch Pitch
Regular price
$90.99
ex VAT
Regular price
Sale price
$90.99
ex VAT
In stock
Price Break
10+
$80.98
19+
$76.43
29+
$75.52
39+
$74.61
49+
$73.70
74+
$72.79
99+
$68.24
199+
$67.33
249+
$66.42
499+
$65.51
999+
$63.69
Couldn't load pickup availability
Description
Description
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 19.05mm = 0.75 (3/4) inch
Technical
Technical
| Pitch (A) | 0.75 inch |
|---|---|
| Pitch (A) | 19.05mm |
| Inside Width min (B) | 12.57mm |
| Roller Diameter max (C) | 11.91mm |
| Plate Height max (D) | 17.5mm |
| Plate Width Inner max (E) | 2.45mm |
| Plate Width Outer max (F) | 2.45mm |
| Pin Diameter max (G) | 5.94mm |
| Pin Length max (H2) | 48.1mm |
| Connecting Link Extension max (J) | 2.6mm |
| Transverse Pitch nom (K) | 22.78mm |
| ISO606 Tensile Strength min | 62600 N |
| Weight | 0.01kg/m |
