SKU: 60-2-SYN-NO12-RENOLD
Renold Synergy 60-2-NO12 ANSI / AS Duplex Chain Single Cranked Cottered Link 3/4 inch Pitch
Renold Synergy 60-2-NO12 ANSI / AS Duplex Chain Single Cranked Cottered Link 3/4 inch Pitch
Regular price
$91.49
ex VAT
Regular price
Sale price
$91.49
ex VAT
In stock
Price Break
2+
$43.21
5+
$40.78
10+
$40.30
29+
$39.81
49+
$39.33
75+
$38.84
100+
$36.41
200+
$35.93
250+
$35.44
500+
$34.96
1000+
$33.99
Description
Description

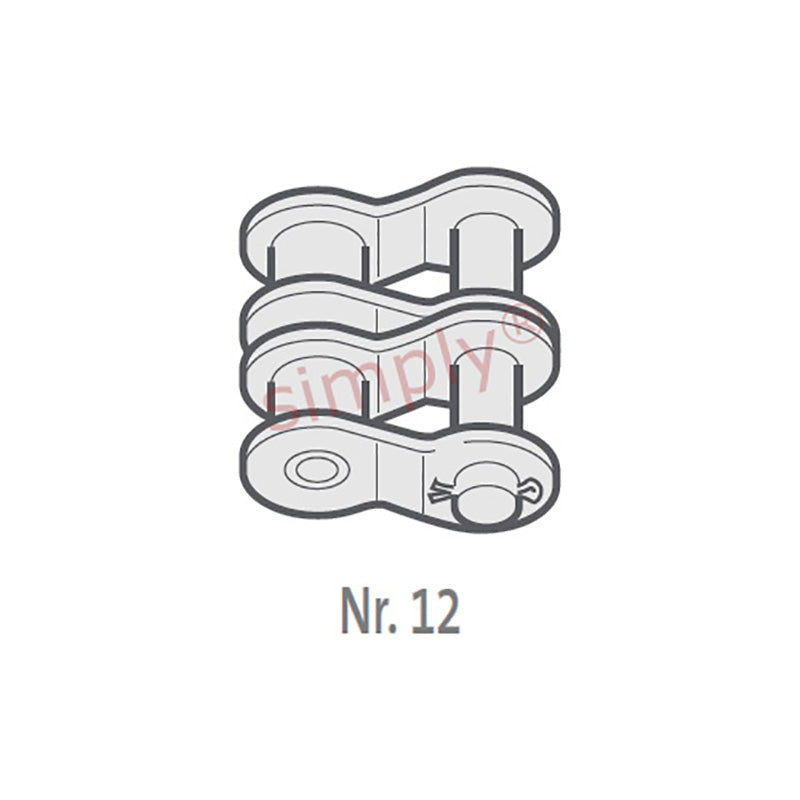

| Renold No. 12 ANSI Duplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 19.05mm = 0.75 (3/4) inch
Technical
Technical
| Pitch (A) | 0.75 inch |
|---|---|
| Pitch (A) | 19.05mm |
| Inside Width min (B) | 12.57mm |
| Roller Diameter max (C) | 11.91mm |
| Plate Height max (D) | 17.5mm |
| Plate Width Inner max (E) | 2.45mm |
| Plate Width Outer max (F) | 2.45mm |
| Pin Diameter max (G) | 5.94mm |
| Pin Length max (H2) | 48.1mm |
| Connecting Link Extension max (J) | 2.6mm |
| Transverse Pitch nom (K) | 22.78mm |
| ISO606 Tensile Strength min | 62600 N |
| Weight | 0.01kg/m |
