SKU: 60-2-SYN-NO11-RENOLD
Renold Synergy 60-2-NO11 ANSI / AS Duplex Chain Cottered Connecting Link 3/4 inch Pitch
Renold Synergy 60-2-NO11 ANSI / AS Duplex Chain Cottered Connecting Link 3/4 inch Pitch
Regular price
$46.31
ex VAT
Regular price
Sale price
$46.31
ex VAT
In stock
Price Break
10+
$41.22
19+
$38.90
29+
$38.44
39+
$37.97
49+
$37.51
74+
$37.05
99+
$34.73
199+
$34.27
249+
$33.81
499+
$33.34
999+
$32.42
Couldn't load pickup availability
Description
Description

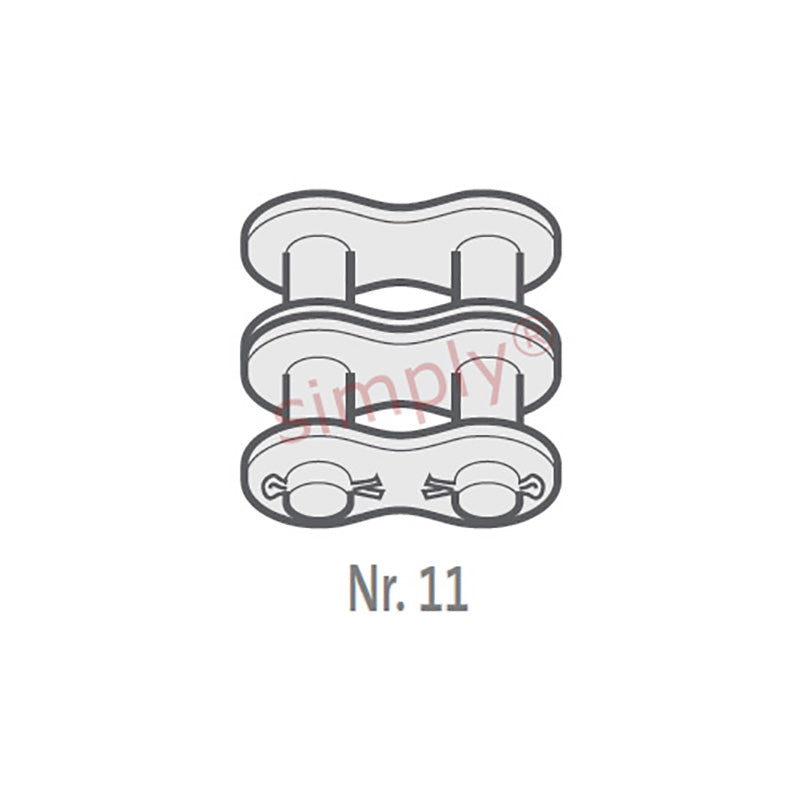

| Renold No. 11 ANSI Duplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 19.05mm = 0.75 (3/4) inch
Technical
Technical
| Pitch (A) | 0.75 inch |
|---|---|
| Pitch (A) | 19.05mm |
| Inside Width min (B) | 12.57mm |
| Roller Diameter max (C) | 11.91mm |
| Plate Height max (D) | 17.5mm |
| Plate Width Inner max (E) | 2.45mm |
| Plate Width Outer max (F) | 2.45mm |
| Pin Diameter max (G) | 5.94mm |
| Pin Length max (H2) | 48.1mm |
| Connecting Link Extension max (J) | 2.6mm |
| Transverse Pitch nom (K) | 22.78mm |
| ISO606 Tensile Strength min | 62600 N |
| Weight | 0.01kg/m |
