SKU: 60-2-BB-NO26-RENOLD
Renold Blue Box 60-2-NO26 ANSI / AS Duplex Chain Connecting Link With Spring Clip 3/4 inch Pitch
Renold Blue Box 60-2-NO26 ANSI / AS Duplex Chain Connecting Link With Spring Clip 3/4 inch Pitch
Regular price
$22.75
ex VAT
Regular price
Sale price
$22.75
ex VAT
In stock
Price Break
10+
$20.25
19+
$19.11
29+
$18.88
39+
$18.66
49+
$18.43
74+
$18.20
99+
$17.06
199+
$16.84
249+
$16.61
499+
$16.38
999+
$15.93
Couldn't load pickup availability
Description
Description

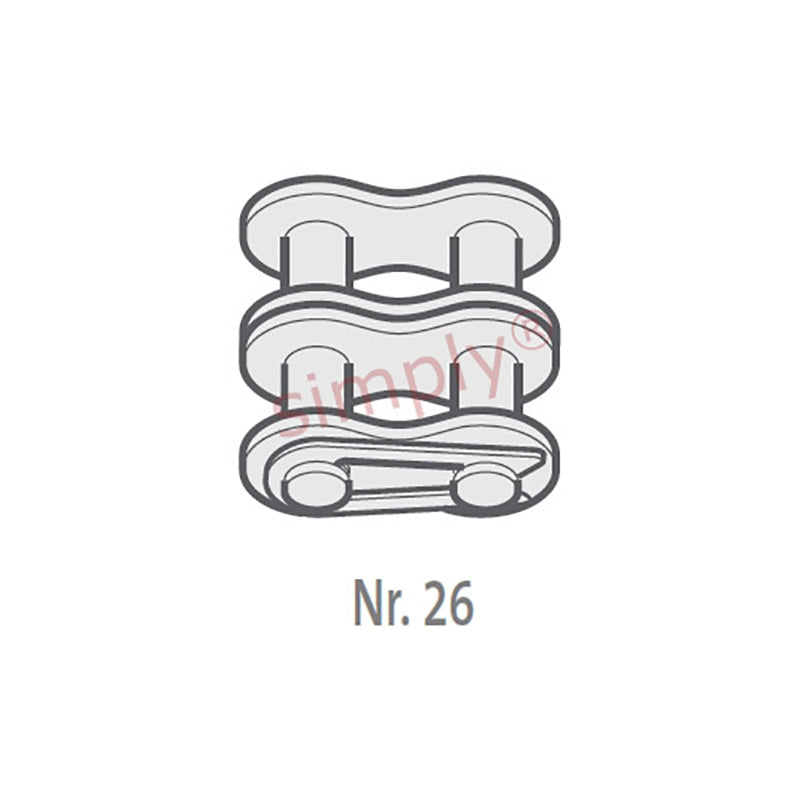

| Renold No. 26 ANSI Duplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 19.05mm = 0.75 (3/4) inch
Technical
Technical
| Pitch (A) | 0.75 inch |
|---|---|
| Pitch (A) | 19.05mm |
| Inside Width min (B) | 12.57mm |
| Roller Diameter max (C) | 11.91mm |
| Plate Height max (D) | 17.5mm |
| Plate Width Inner max (E) | 2.45mm |
| Plate Width Outer max (F) | 2.45mm |
| Pin Diameter max (G) | 5.94mm |
| Pin Length max (H2) | 48.1mm |
| Connecting Link Extension max (J) | 2.6mm |
| Transverse Pitch nom (K) | 22.78mm |
| ISO606 Tensile Strength min | 62600 N |
| Weight | 0.01kg/m |
