Renold SD 60-1-NO12 ANSI / AS Simplex Chain Single Cranked Cottered Link 3/4 inch Pitch
Renold SD 60-1-NO12 ANSI / AS Simplex Chain Single Cranked Cottered Link 3/4 inch Pitch
Regular price
$16.55
ex VAT
Regular price
Sale price
$16.55
ex VAT
In stock
Price Break
2+
$7.81
5+
$7.38
10+
$7.29
29+
$7.20
49+
$7.11
75+
$7.02
100+
$6.59
200+
$6.50
250+
$6.41
500+
$6.32
1000+
$6.15
Description
Description

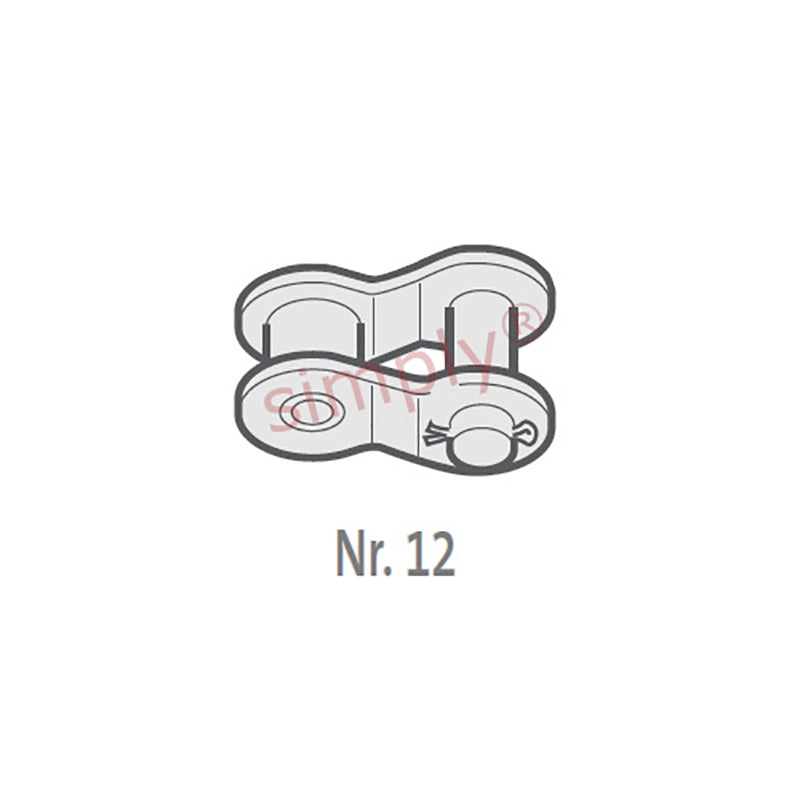

| Renold No. 12 ANSI Simplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 19.05mm = 0.75 (3/4) inch
Technical
Technical
| Pitch (A) | 0.75 inch |
|---|---|
| Pitch (A) | 19.05mm |
| Inside Width min (B) | 12.57mm |
| Roller Diameter max (C) | 11.91mm |
| Plate Height max (D) | 18mm |
| Plate Width Inner max (E) | 2.4mm |
| Plate Width Outer max (F) | 2.4mm |
| Pin Diameter max (G) | 5.94mm |
| Pin Length max (H1) | 25.9mm |
| Connecting Link Extension max (J) | 1.6mm |
| ISO606 Tensile Strength min | 31300 N |
| Weight | 1.5kg/m |
