SKU: 570-302

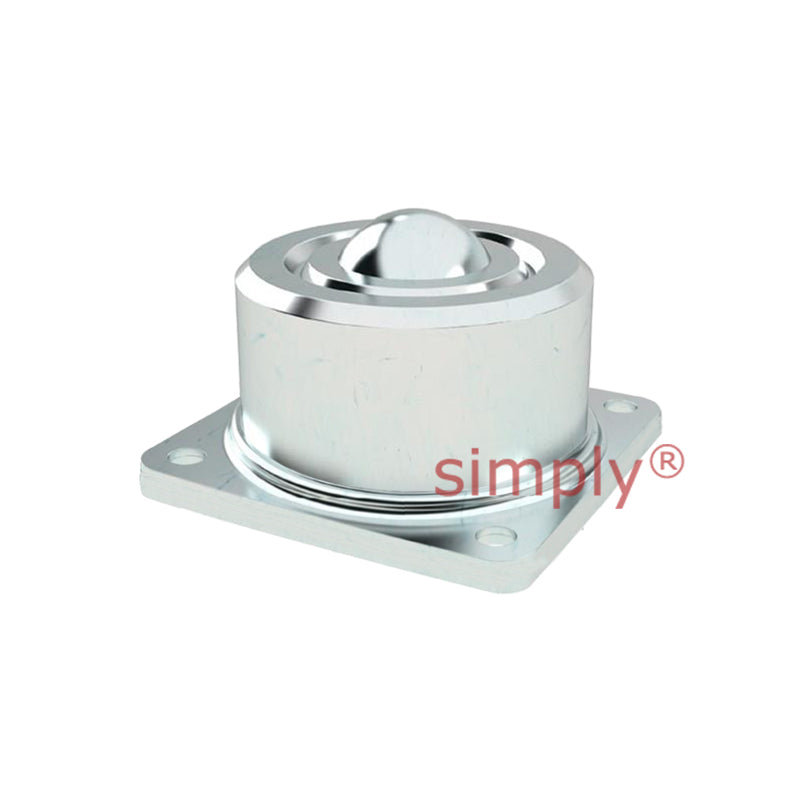

High-Performance High Capacity 4 Bolt Base Mounted Square Surface Ball Transfer Unit with 25.4mm Steel Ball - Load Capacity 160kg - Allow 2-3 Days
High-Performance High Capacity 4 Bolt Base Mounted Square Surface Ball Transfer Unit with 25.4mm Steel Ball - Load Capacity 160kg - Allow 2-3 Days
Regular price
$137.64
ex VAT
Regular price
Sale price
$137.64
ex VAT
In stock
Price Break
4+
$65.01
9+
$61.36
14+
$60.63
19+
$59.89
49+
$59.16
74+
$58.43
99+
$54.78
199+
$54.05
249+
$53.32
499+
$52.59
999+
$51.13
Description
Description
Surface Fixed Base Mount Steel Ball Transfer Units: Ball transfer units are designed for multi-direction materials handling solutions. This series of transfer units consists of a large load-bearing steel ball running on several smaller support balls contained within a zinc-plated mild steel flanged housing, allowing the large ball to rotate freely. Base mount ball transfer units are equipped with flange-mounted holes that enable users to securely anchor the unit onto the base of a flat surface, enhancing stability.
Benefits: Greatly reduces friction and allows heavy loads to be moved with a minimum of effort. Easy assembly, reducing downtime.
- Brand / Quality:
- Simply Ball Transfer Units
- Outside Diameter:
- 25.4mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Ball Diameter | 25.4mm |
| Y | 41.3mm |
| W | 35.9mm |
| D | 44.5mm |
| FXF | 57.2mm |
| CXC | 44.5mm |
| T | 4.8mm |
| E | 4x5.6mm |
| --- | Loads and Speeds |
| Load Capacity | 160 kg |
| Load capacity | 350 lbs |
| Weight | 0.45 kg |
| --- | Materials |
| Material | Body: Zinc Plated Mild Steel<br>Ball: Steel 9Cr18Mo |
