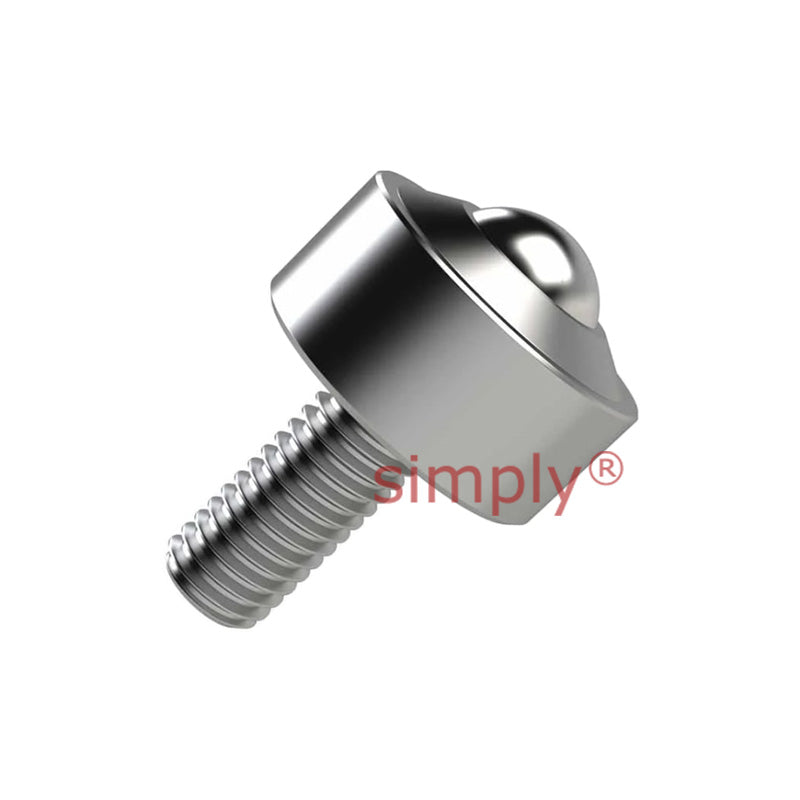

High-Performance Medium Duty Stem Fitting Ball Transfer Unit with 12mm Steel Ball - Load Capacity 30kg - Allow 2-3 Days

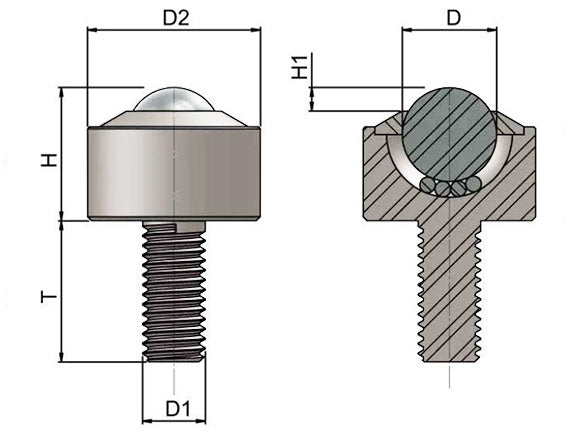

Threaded Medium-Duty Ball Transfer Unit: Ball transfer units are designed for multi-direction materials handling solutions. This series of transfer units often named recess mount ball transfer units, consist of a large load-bearing steel ball running on several smaller support balls contained within a recessed zinc-plated carbon steel housing, allowing the large ball to rotate freely. Recessed threaded ball transfer Units fit into pre-defined holes and can be fitted upward or downward. These medium-duty ball transfer units are more robust in construction and load-handling than the light-duty ball transfer units. They have a working temperature range of -20 degrees C to +60 degrees C. They are commonly used on conveyor setups and are an ideal solution for the smooth and precise moving of loads.
Benefits: Greatly reduces friction and allows heavy loads to be moved with a minimum of effort. Easy assembly, reducing downtime.

Brand / Quality:

Simply Ball Transfer Units

Thread Size:

M8

Outside Diameter:

12mm
