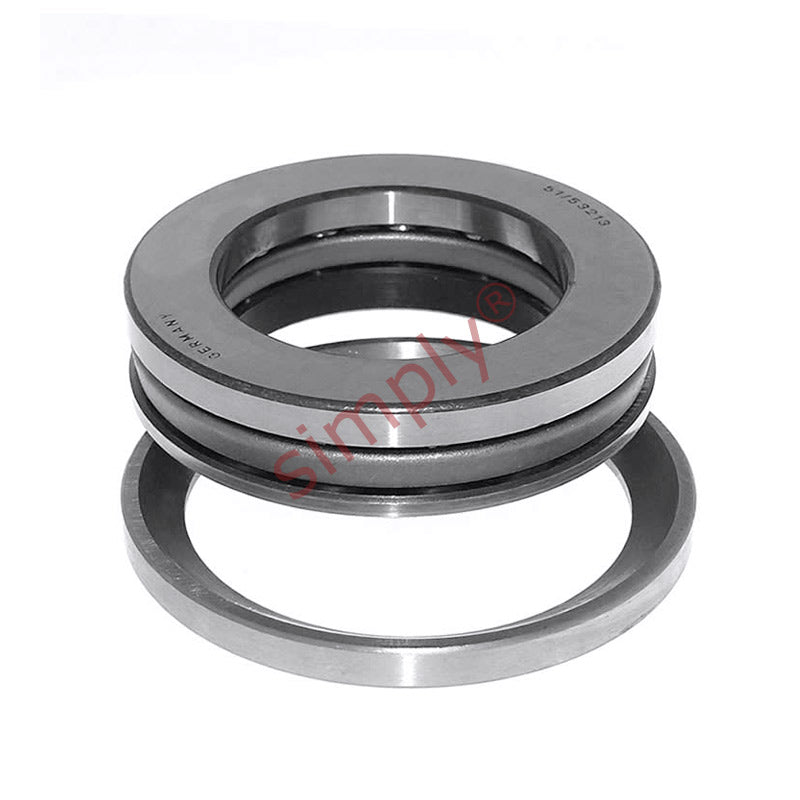

53218 Budget Single Thrust Ball Bearing with Spherical Housing Seat U218 90x135x42mm
53218 Budget Single Thrust Ball Bearing with Spherical Housing Seat U218 90x135x42mm
Regular price
$242.45
ex VAT
Regular price
Sale price
$242.45
ex VAT
In stock
Price Break
10+
$215.78
19+
$203.66
29+
$201.23
39+
$198.81
49+
$196.38
74+
$193.96
99+
$181.84
199+
$179.41
249+
$176.99
499+
$174.56
999+
$169.72
Couldn't load pickup availability
Description
Description
|
Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. The lower washer has a spherical face to be used with a spherical housing washer. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 90mm
- Outside Diameter:
- 135mm
- Width:
- 42mm
Technical
Technical
| d | 90mm |
|---|---|
| D | 135mm |
| H1 | 42mm |
| Dynamic load C | 119 kN |
| Static load Co | 325 kN |
| Fatigue load limit Pu | 11.4 kN |
| Minimum load factor A | 0.55 |
| Reference speed | 2000 rpm |
| Limiting Speed | 2800 rpm |
| Weight | 2.1 kg |
| Seating Washer | U218 |
| d1 | 135mm |
| D1 | 93mm |
| D2 | 110mm |
| D3 | 140mm |
| H | 38.5mm |
| C | 13.5mm |
| R | 100mm |
| s | 45mm |
| r1r2 min | 1.1mm |
| da max | 117mm |
| Da max | 110mm |
| ra max | 1mm |
