SKU: 53214?EU

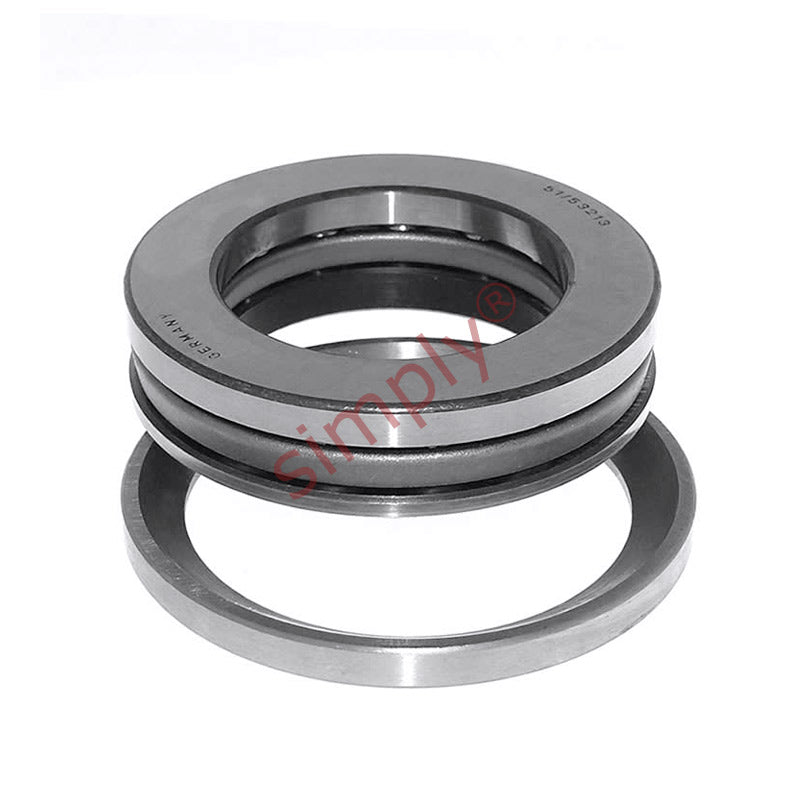

53214 Budget Single Thrust Ball Bearing with Spherical Housing Seat U214 70x105x32mm
53214 Budget Single Thrust Ball Bearing with Spherical Housing Seat U214 70x105x32mm
Regular price
$139.15
ex VAT
Regular price
Sale price
$139.15
ex VAT
In stock
Price Break
10+
$65.72
19+
$62.03
29+
$61.29
39+
$60.55
49+
$59.81
74+
$59.08
99+
$55.38
199+
$54.65
249+
$53.91
499+
$53.17
999+
$51.69
Share this product
Description
Description
|
Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. The lower washer has a spherical face to be used with a spherical housing washer. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 105mm
- Width:
- 32mm
Technical
Technical
| d | 70mm |
|---|---|
| D | 105mm |
| H1 | 32mm |
| Dynamic load C | 65 kN |
| Static load Co | 173 kN |
| Fatigue load limit Pu | 6.4 kN |
| Minimum load factor A | 0.16 |
| Reference speed | 2600 rpm |
| Limiting Speed | 3600 rpm |
| Weight | 0.97 kg |
| Seating Washer | U214 |
| d1 | 105mm |
| D1 | 72mm |
| D2 | 88mm |
| D3 | 110mm |
| H | 28.8mm |
| C | 9mm |
| R | 80mm |
| s | 38mm |
| r1r2 min | 1mm |
| da max | 91mm |
| Da max | 88mm |
| ra max | 1mm |
