SKU: 52315-SKF

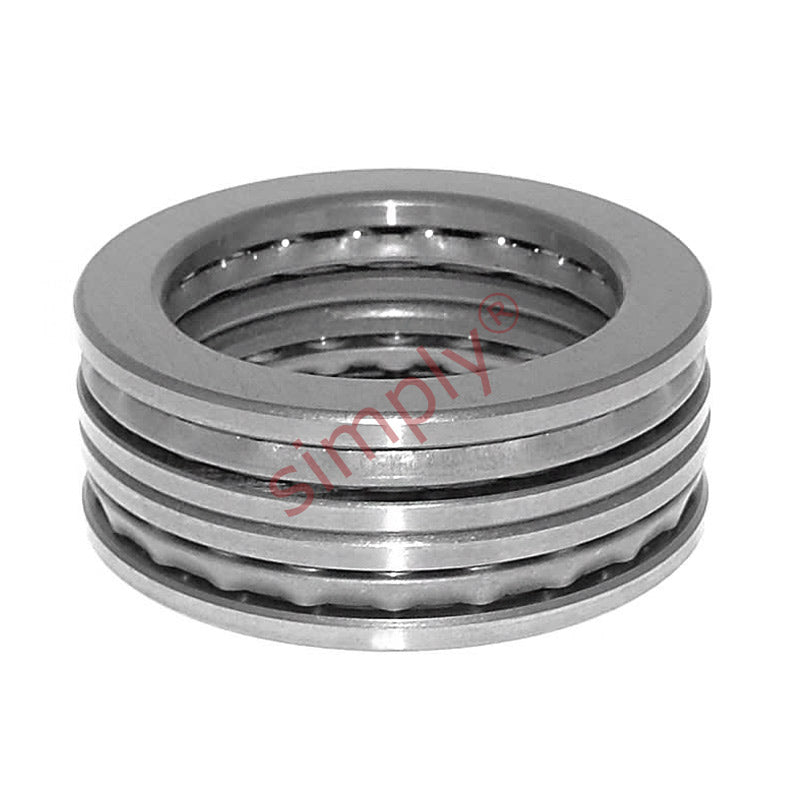

SKF 52315 Double Thrust Ball Bearing with Flat Seats 60x135x79mm
SKF 52315 Double Thrust Ball Bearing with Flat Seats 60x135x79mm
Regular price
$977.02
ex VAT
Regular price
Sale price
$977.02
ex VAT
In stock
Price Break
10+
$869.55
19+
$820.70
29+
$810.93
39+
$801.16
49+
$791.39
74+
$781.62
99+
$732.77
199+
$722.99
249+
$713.22
499+
$703.45
999+
$683.91
Couldn't load pickup availability
Description
Description
|
SKF Double Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of five parts, a top, bottom and middle plate with annular grooves in them and two caged ball bearing assemblies that are sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in two directions. Clearance is provided in the bore of Centre of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 135mm
- Width:
- 79mm
Technical
Technical
| d | 60mm |
|---|---|
| D | 135mm |
| H | 79mm |
| Dynamic load C | 163 kN |
| Static load Co | 390 kN |
| Fatigue load limit Pu | 14 kN |
| Minimum load factor A | 0.79 |
| Reference speed | 1700 rpm |
| Limiting speed | 2400 rpm |
| Weight | 4.8 kg |
| D1 | 77mm |
| B | 18mm |
| r1r2 | 1.5mm |
| r3r4 | 1mm |
| da | 75mm |
| Da max | 99mm |
| ra max | 1.5mm |
| rb max | 1mm |
