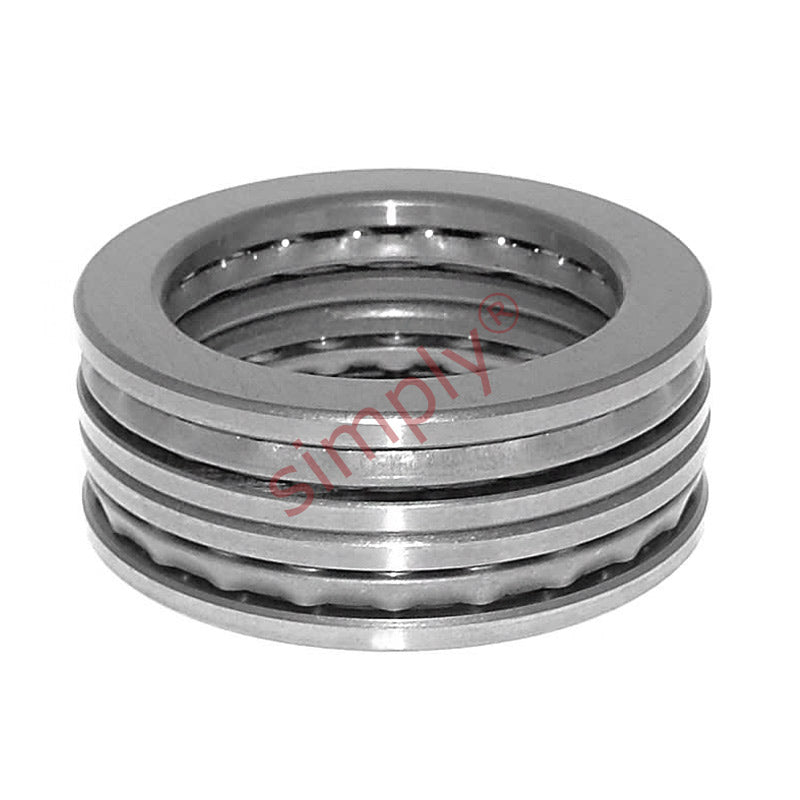

SKF 52310 Double Thrust Ball Bearing with Flat Seats 40x95x58mm
SKF 52310 Double Thrust Ball Bearing with Flat Seats 40x95x58mm
Regular price
$346.34
ex VAT
Regular price
Sale price
$346.34
ex VAT
In stock
Price Break
10+
$308.24
19+
$290.93
29+
$287.46
39+
$284.00
49+
$280.54
74+
$277.07
99+
$259.76
199+
$256.29
249+
$252.83
499+
$249.36
999+
$242.44
Couldn't load pickup availability
Description
Description
|
SKF Double Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of five parts, a top, bottom and middle plate with annular grooves in them and two caged ball bearing assemblies that are sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in two directions. Clearance is provided in the bore of Centre of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 95mm
- Width:
- 58mm
Technical
Technical
| d | 40mm |
|---|---|
| D | 95mm |
| H | 58mm |
| Dynamic load C | 88.4 kN |
| Static load Co | 190 kN |
| Fatigue load limit Pu | 6.95 kN |
| Minimum load factor A | 0.19 |
| Reference speed | 2600 rpm |
| Limiting speed | 3600 rpm |
| Weight | 1.75 kg |
| D1 | 52mm |
| B | 14mm |
| r1r2 | 1.1mm |
| r3r4 | 0.6mm |
| da | 50mm |
| Da max | 68mm |
| ra max | 1mm |
| rb max | 0.6mm |
