SKU: 52208-SKF

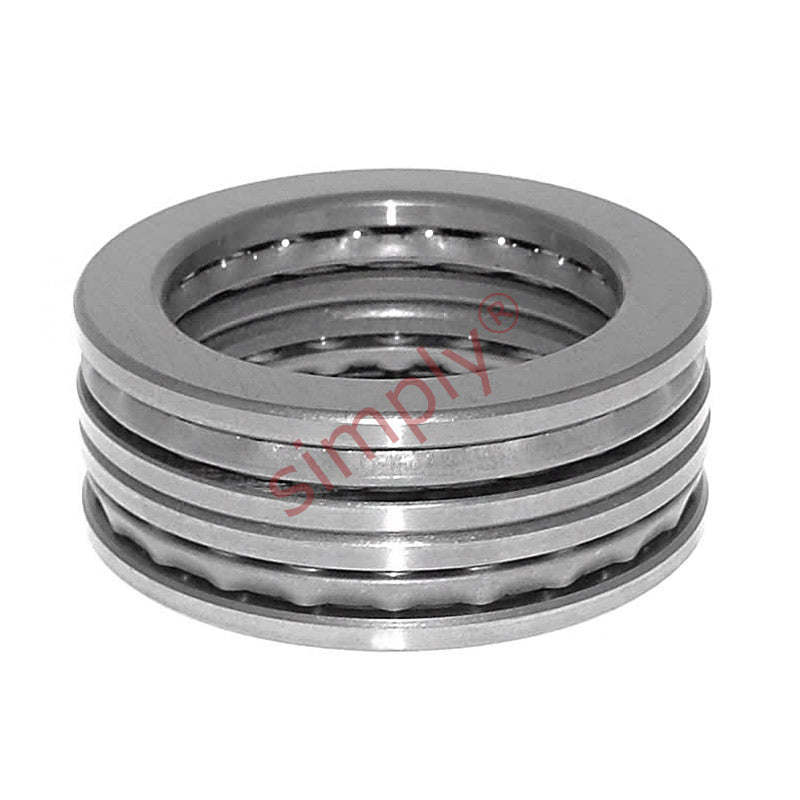

SKF 52208 Double Thrust Ball Bearing with Flat Seats 30x68x36mm
SKF 52208 Double Thrust Ball Bearing with Flat Seats 30x68x36mm
Regular price
$134.72
ex VAT
Regular price
Sale price
$134.72
ex VAT
In stock
Price Break
10+
$119.90
19+
$113.16
29+
$111.82
39+
$110.47
49+
$109.12
74+
$107.78
99+
$101.04
199+
$99.69
249+
$98.35
499+
$97.00
999+
$94.30
Couldn't load pickup availability
Description
Description
|
SKF Double Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of five parts, a top, bottom and middle plate with annular grooves in them and two caged ball bearing assemblies that are sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in two directions. Clearance is provided in the bore of Centre of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 68mm
- Width:
- 36mm
Technical
Technical
| d | 30mm |
|---|---|
| D | 68mm |
| H | 36mm |
| Dynamic load C | 46.8 kN |
| Static load Co | 106 kN |
| Fatigue load limit Pu | 4 kN |
| Minimum load factor A | 0.058 |
| Reference speed | 3800 rpm |
| Limiting speed | 5300 rpm |
| Weight | 0.55 kg |
| D1 | 42mm |
| B | 9mm |
| r1r2 | 1mm |
| r3r4 | 0.6mm |
| da | 40mm |
| Da max | 51mm |
| ra max | 1mm |
| rb max | 0.6mm |
