SKU: 52207.MB

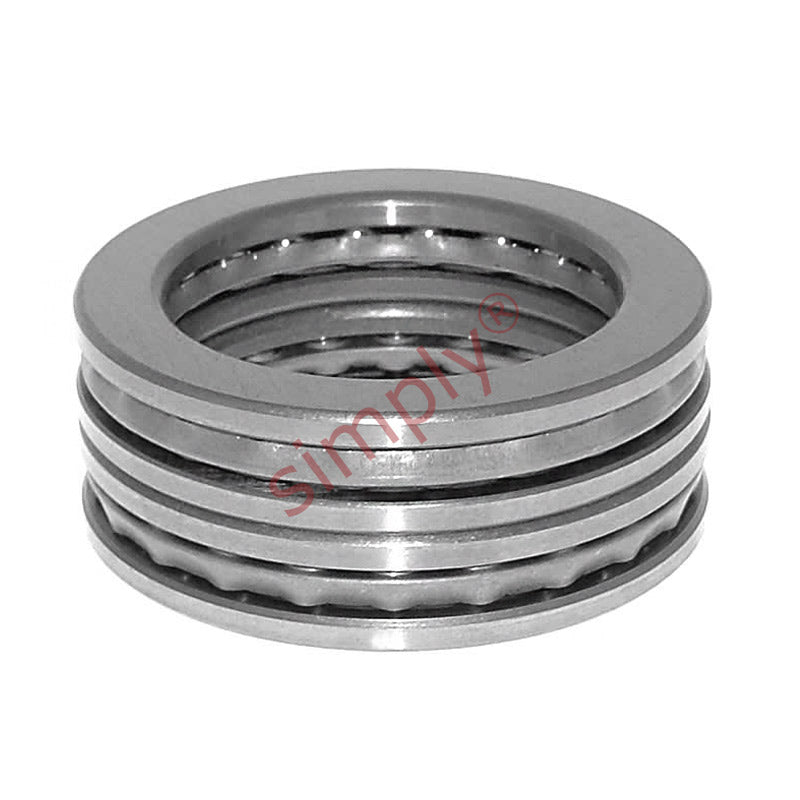

52207 Double Thrust Ball Bearing with Flat Seats 30x62x34mm
52207 Double Thrust Ball Bearing with Flat Seats 30x62x34mm
Regular price
$66.92
ex VAT
Regular price
Sale price
$66.92
ex VAT
In stock
Price Break
10+
$31.60
19+
$29.83
29+
$29.47
39+
$29.12
49+
$28.76
74+
$28.41
99+
$26.63
199+
$26.28
249+
$25.92
499+
$25.57
999+
$24.86
Share this product
Description
Description
|
Double Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of five parts, a top, bottom and middle plate with annular grooves in them and two caged ball bearing assemblies that are sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in two directions. Clearance is provided in the bore of Centre of the raceways to allow for alignment. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 62mm
- Width:
- 34mm
Technical
Technical
| d | 30mm |
|---|---|
| D | 62mm |
| H | 34mm |
| Dynamic load C | 35.1 kN |
| Static load Co | 73.5 kN |
| Fatigue load Pu | 2.7 kN |
| Minimum load factor A | 0.028 |
| Reference speed | 4000 rpm |
| Limiting speed | 5600 rpm |
| Weight | 0.41 kg |
| D1 | 37mm |
| B | 8mm |
| r1r2 min | 1mm |
| r3r4 min | 0.3mm |
| da | 35mm |
| Da max | 46mm |
| ra max | 1mm |
| rb max | 0.3mm |
