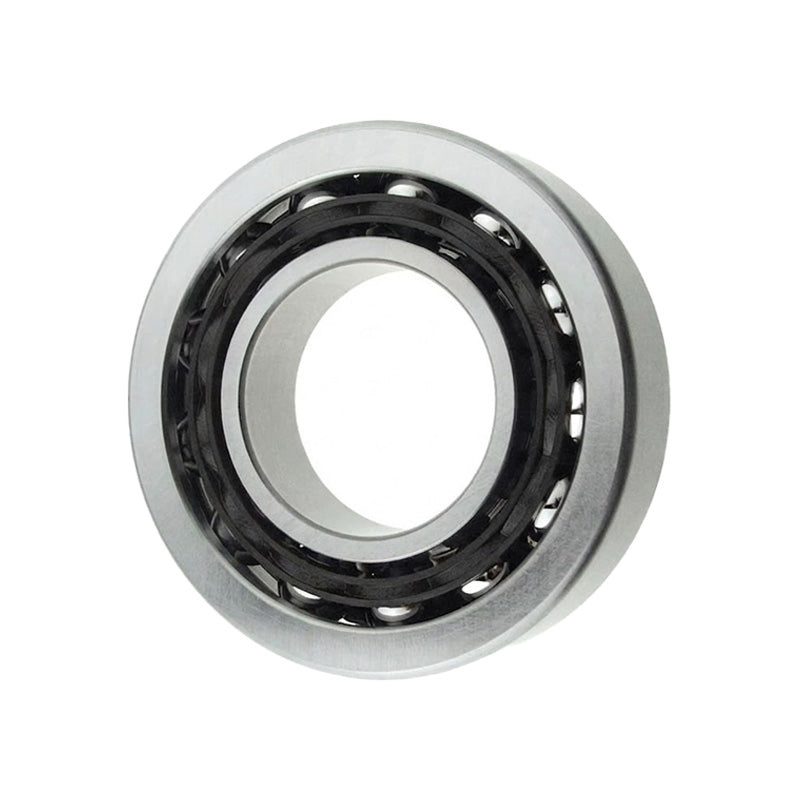

• SNR 5210EEG15 Rubber Sealed Double Row Angular Contact Ball Bearing 50x90x30
1 1

SKU: 5210-EE-G15

SNR 5210EEG15 Rubber Sealed Double Row Angular Contact Ball Bearing 50x90x30

SNR 5210EEG15 Rubber Sealed Double Row Angular Contact Ball Bearing 50x90x30
$59.70 ex VAT
$59.70 ex VAT
Sale Sold out

Equivalent to: 32102RS 52102RS

In stock

Price Break
10+ $53.13
19+ $50.15
29+ $49.55
39+ $48.95
49+ $48.36
74+ $47.76
99+ $44.78
199+ $44.18
249+ $43.58
499+ $42.98
999+ $41.79
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Rubber Sealed Double Row Angular Contact Ball Bearings: Correspond to the design of two single row angular contact ball bearings side by side but occupying less space. They can accommodate radial loads as well as axial loads acting in both directions. They provide a rigid bearing arrangement and accommodate tilting moments well
Benefits: Compact, rigid, accommodates tilting, radial and axial loads


Click and Drag to Zoom More
Tick Transmission and gearboxes
Tick Cranes, elevator and lifting equipment
Tick Agricultural, pumps, mining
Tick Rail and transport use
Tick General engineering applications
Tick Marine and Shipping
Tick Great value quality parts dispatched the same day

Supplied from the Worlds Leading Bearing Manufacturers
Supplied in the world's leading bearing brands

Equivalent: 32102RS 52102RS
Brand / Quality:
SNR - High Quality
Inside Diameter:
50mm
Outside Diameter:
90mm
Width:
30.2mm
Seals / Shields:
Rubber Sealed
Technical
d 50mm
D 90mm
B 30.2mm
Dynamic Load 48.5 kN
Static Load 42.2 kN
Fatigue Load Limit Cu 2.55 kN
Weight 0.8kg
d1 62mm
D1 80.6mm
a 45.5mm
da min 56.5mm
da max 62mm
Da max 83.5mm
ra min 1mm
