SKU: 51311-SKF

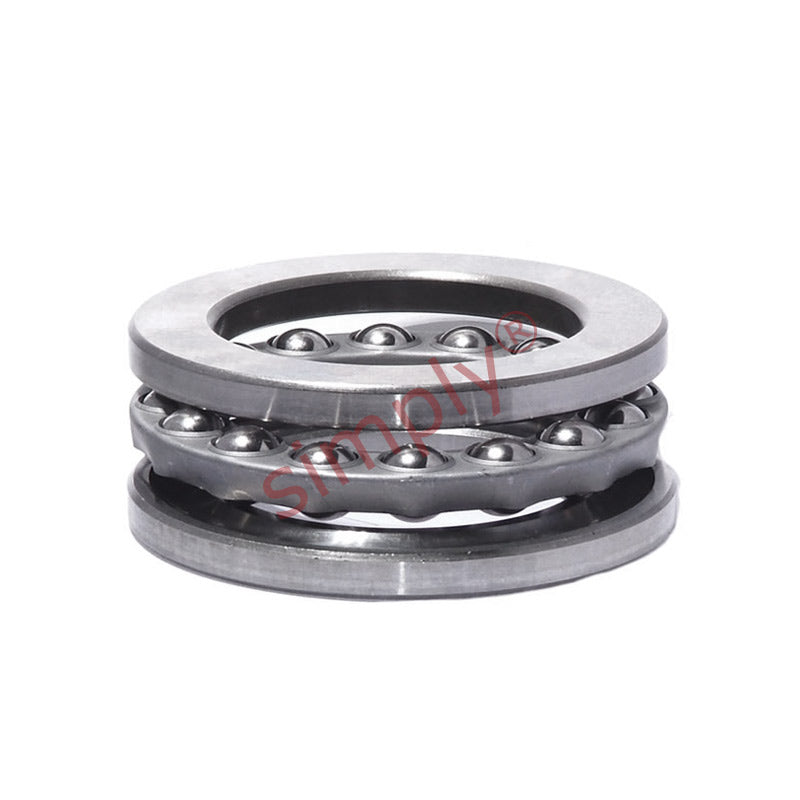

SKF 51311 Single Thrust Ball Bearing 55x105x35mm
SKF 51311 Single Thrust Ball Bearing 55x105x35mm
Regular price
$191.25
ex VAT
Regular price
Sale price
$191.25
ex VAT
In stock
Price Break
10+
$170.21
19+
$160.65
29+
$158.74
39+
$156.83
49+
$154.91
74+
$153.00
99+
$143.44
199+
$141.53
249+
$139.61
499+
$137.70
999+
$133.88
Couldn't load pickup availability
Description
Description
|
SKF Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 105mm
- Width:
- 35mm
Technical
Technical
| d | 55mm |
|---|---|
| D | 105mm |
| H | 35mm |
| Dynamic load C | 104 kN |
| Static load Co | 224 kN |
| Fatigue load limit Pu | 8.3 kN |
| Minimum load factor A | 0.26 |
| Reference speed | 2200 rpm |
| Limiting speed | 3200 rpm |
| Weight | 1.3 kg |
| d1 | 105mm |
| D1 | 57mm |
| r1r2 min | 1.1mm |
| da min | 85mm |
| Da max | 75mm |
| ra max | 1mm |
