SKU: 51217-SKF

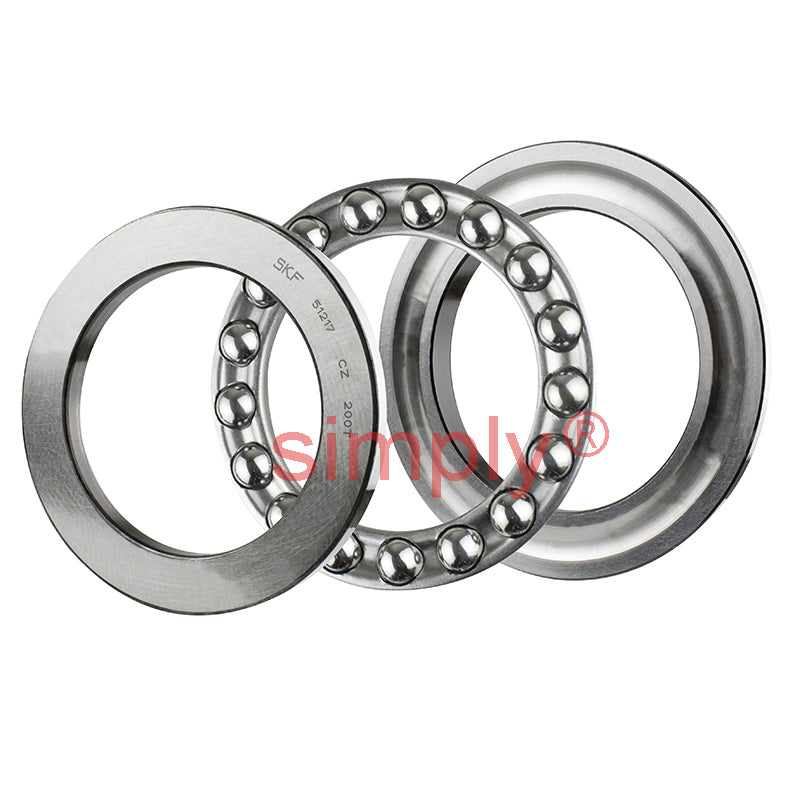

SKF 51217 Single Thrust Ball Bearing 85x125x31mm
SKF 51217 Single Thrust Ball Bearing 85x125x31mm
Regular price
$196.72
ex VAT
Regular price
Sale price
$196.72
ex VAT
In stock
Price Break
10+
$175.08
19+
$165.24
29+
$163.28
39+
$161.31
49+
$159.34
74+
$157.38
99+
$147.54
199+
$145.57
249+
$143.61
499+
$141.64
999+
$137.70
Couldn't load pickup availability
Description
Description
|
SKF Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 85mm
- Outside Diameter:
- 125mm
- Width:
- 31mm
Technical
Technical
| d | 85mm |
|---|---|
| D | 125mm |
| H | 31mm |
| Dynamic load C | 97.5 kN |
| Static load Co | 275 kN |
| Fatigue load limit Pu | 9.8 kN |
| Minimum load factor A | 0.39 |
| Reference speed | 2200 rpm |
| Limiting speed | 3000 rpm |
| Weight | 1.2 kg |
| d1 | 125mm |
| D1 | 88mm |
| r1r2 min | 1mm |
| da min | 109mm |
| Da max | 101mm |
| ra max | 1mm |
