SKU: 51216-SKF

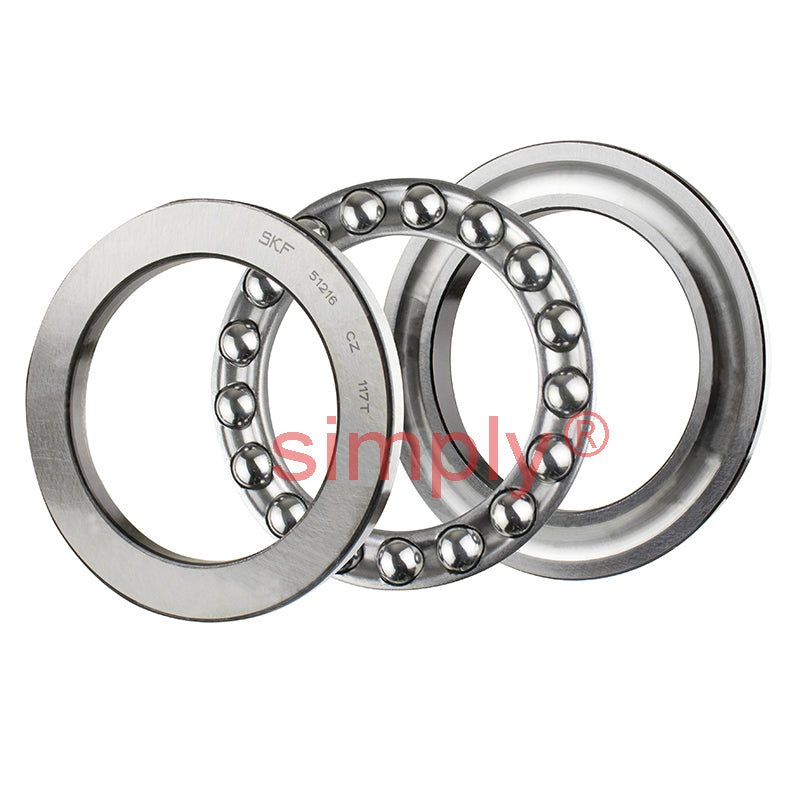

SKF 51216 Single Thrust Ball Bearing 80x115x28mm
SKF 51216 Single Thrust Ball Bearing 80x115x28mm
Regular price
$179.68
ex VAT
Regular price
Sale price
$179.68
ex VAT
In stock
Price Break
10+
$159.92
19+
$150.93
29+
$149.13
39+
$147.34
49+
$145.54
74+
$143.74
99+
$134.76
199+
$132.96
249+
$131.17
499+
$129.37
999+
$125.78
Couldn't load pickup availability
Description
Description
|
SKF Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 115mm
- Width:
- 28mm
Technical
Technical
| d | 80mm |
|---|---|
| D | 115mm |
| H | 28mm |
| Dynamic load C | 76.1 kN |
| Static load Co | 208 kN |
| Fatigue load limit Pu | 7.65 kN |
| Minimum load factor A | 0.22 |
| Reference speed | 2400 rpm |
| Limiting speed | 3400 rpm |
| Weight | 0.91 kg |
| d1 | 115mm |
| D1 | 82mm |
| r1r2 min | 1mm |
| da min | 101mm |
| Da max | 94mm |
| ra max | 1mm |
