SKU: 51207.MB

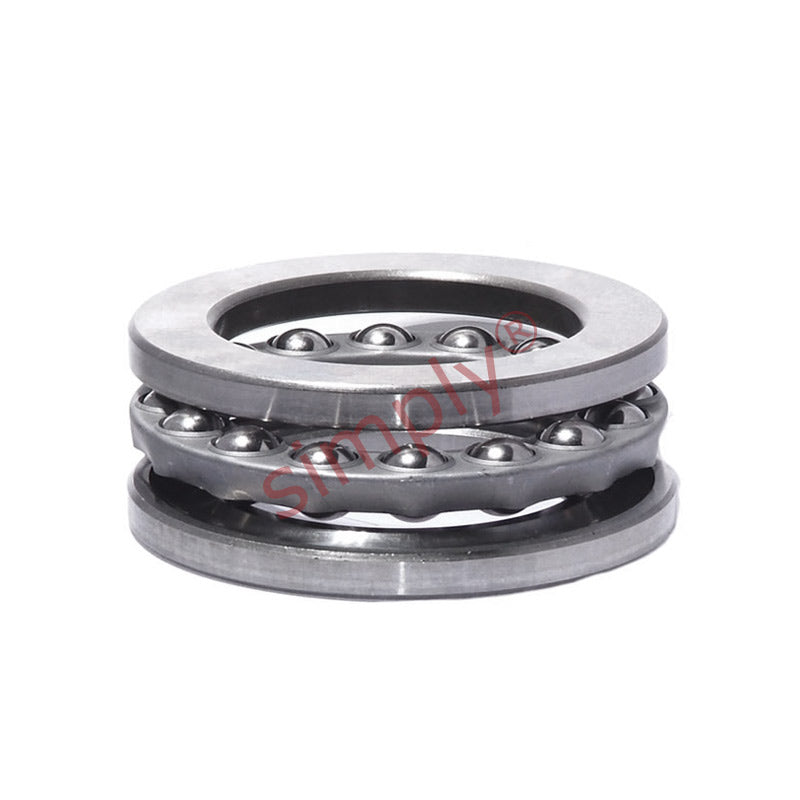

51207 Thrust Ball Bearing 35x62x18mm
51207 Thrust Ball Bearing 35x62x18mm
Regular price
$38.24
ex VAT
Regular price
Sale price
$38.24
ex VAT
In stock
Price Break
10+
$34.03
19+
$32.12
29+
$31.74
39+
$31.36
49+
$30.97
74+
$30.59
99+
$28.68
199+
$28.30
249+
$27.92
499+
$27.53
999+
$26.77
Couldn't load pickup availability
Description
Description
|
Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 62mm
- Width:
- 18mm
Technical
Technical
| d | 35mm |
|---|---|
| D | 62mm |
| H | 18mm |
| Dynamic load C | 35.1 kN |
| Static load Co | 73.5 kN |
| Fatigue load limit Pu | 2.7 kN |
| Minimum load factor A | 0.028 |
| Reference speed | 4000 rpm |
| Limiting speed | 5600 rpm |
| Weight | 0.22 kg |
| d1 | 62mm |
| D1 | 37mm |
| r1r2 min | 1mm |
| da min | 51mm |
| Da max | 46mm |
| ra max | 1mm |
