SKU: 51200-SKF

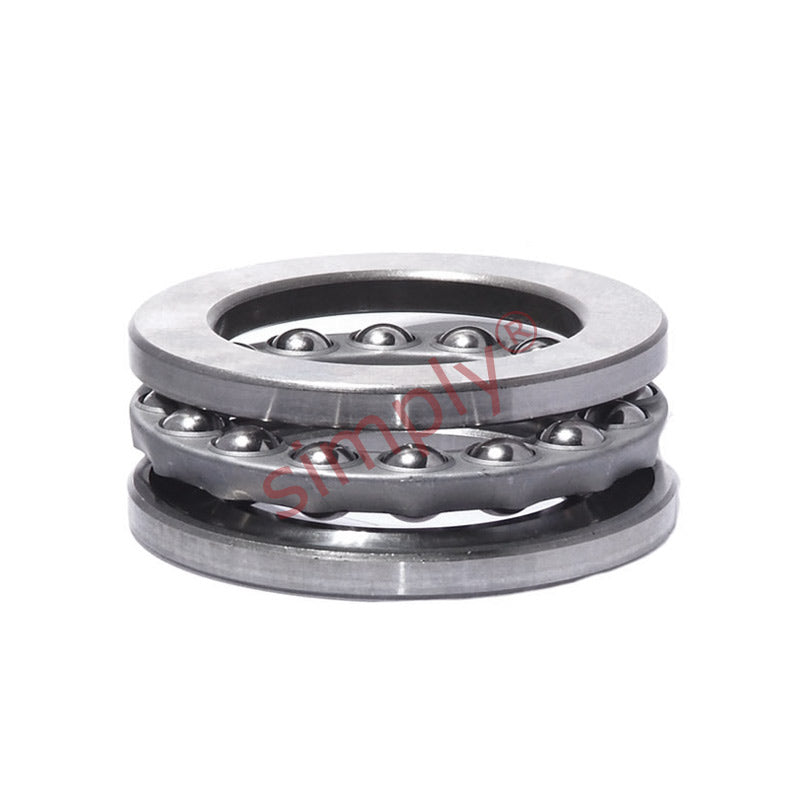

SKF 51200 Single Thrust Ball Bearing 10x26x11mm
SKF 51200 Single Thrust Ball Bearing 10x26x11mm
Regular price
$35.12
ex VAT
Regular price
Sale price
$35.12
ex VAT
In stock
Price Break
10+
$31.26
19+
$29.50
29+
$29.15
39+
$28.80
49+
$28.45
74+
$28.10
99+
$26.34
199+
$25.99
249+
$25.64
499+
$25.29
999+
$24.58
Couldn't load pickup availability
Description
Description
|
SKF Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 26mm
- Width:
- 11mm
Technical
Technical
| d | 10mm |
|---|---|
| D | 26mm |
| H | 11mm |
| Dynamic load C | 12.7 kN |
| Static load Co | 18.6 kN |
| Fatigue load limit Pu | 0.7 kN |
| Minimum load factor A | 0.0018 |
| Reference speed | 8000 rpm |
| Limiting speed | 11000 rpm |
| Weight | 0.03 kg |
| d1 | 26mm |
| D1 | 12mm |
| r1r2 min | 0.6mm |
| da min | 20mm |
| Da max | 16mm |
| ra max | 0.6mm |
