SKU: 51172F-SKF

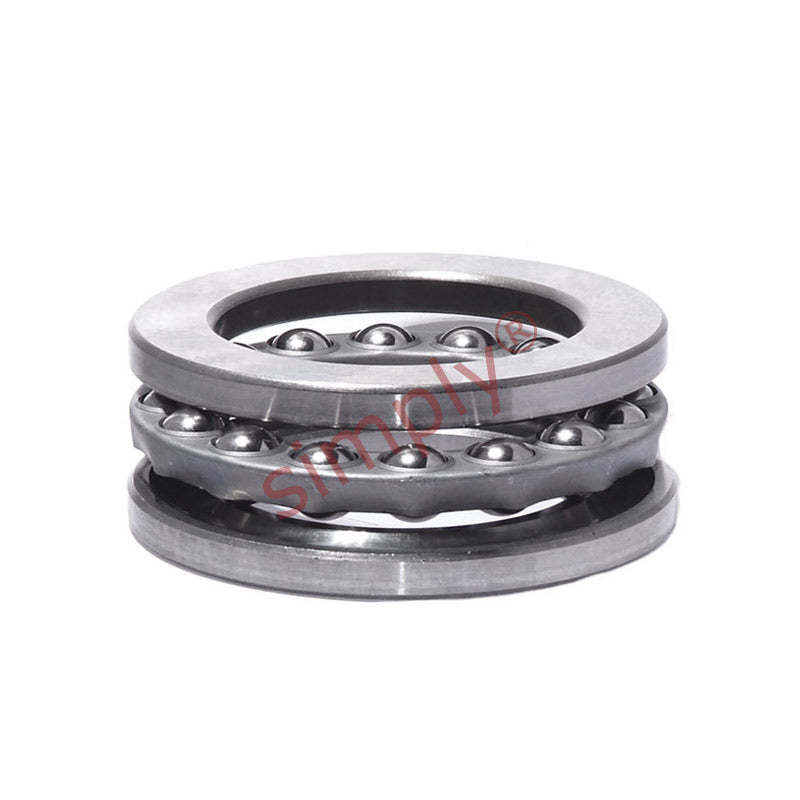

SKF 51172F Single Thrust Ball Bearing 360x440x65mm
SKF 51172F Single Thrust Ball Bearing 360x440x65mm
Regular price
$71,950.40
ex VAT
Regular price
Sale price
$71,950.40
ex VAT
In stock
Price Break
10+
$64,035.86
19+
$60,438.34
29+
$59,718.83
39+
$58,999.33
49+
$58,279.82
74+
$57,560.32
99+
$53,962.80
199+
$53,243.30
249+
$52,523.79
499+
$51,804.29
999+
$50,365.28
Couldn't load pickup availability
Description
Description
|
SKF Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 360mm
- Outside Diameter:
- 440mm
- Width:
- 65mm
Technical
Technical
| d | 360mm |
|---|---|
| D | 440mm |
| H | 65mm |
| Dynamic load C | 390 kN |
| Static load Co | 2080 kN |
| Fatigue load limit Pu | 38 kN |
| Minimum load factor A | 22 |
| Reference speed | 750 rpm |
| Limiting speed | 1100 rpm |
| Weight | 22 kg |
| d1 | 436mm |
| D1 | 364mm |
| r1r2 min | 2mm |
| da min | 408mm |
| Da max | 392mm |
| ra max | 2mm |
