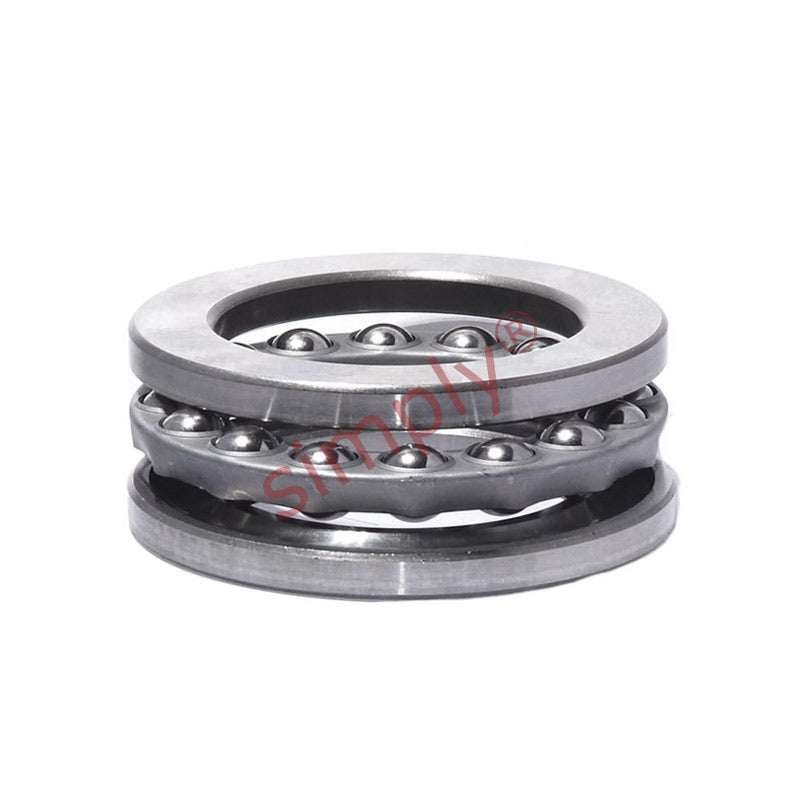

SKF 51114 Single Thrust Ball Bearing 70x95x18mm
SKF 51114 Single Thrust Ball Bearing 70x95x18mm
Regular price
$64.76
ex VAT
Regular price
Sale price
$64.76
ex VAT
In stock
Price Break
10+
$57.64
19+
$54.40
29+
$53.75
39+
$53.10
49+
$52.46
74+
$51.81
99+
$48.57
199+
$47.92
249+
$47.27
499+
$46.63
999+
$45.33
Couldn't load pickup availability
Description
Description
|
SKF Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 95mm
- Width:
- 18mm
Technical
Technical
| d | 70mm |
|---|---|
| D | 95mm |
| H | 18mm |
| Dynamic load C | 40.3 kN |
| Static load Co | 120 kN |
| Fatigue load limit Pu | 4.4 kN |
| Minimum load factor A | 0.074 |
| Reference speed | 3400 rpm |
| Limiting speed | 4500 rpm |
| Weight | 0.35 kg |
| d1 | 95mm |
| D1 | 72mm |
| r1r2 min | 1mm |
| da min | 85mm |
| Da max | 80mm |
| ra max | 1mm |
