SKU: 51105-SKF
SKF 51105 Single Thrust Ball Bearing 25x42x11mm
SKF 51105 Single Thrust Ball Bearing 25x42x11mm
Regular price
$26.84
ex VAT
Regular price
Sale price
$26.84
ex VAT
In stock
Price Break
10+
$23.89
19+
$22.55
29+
$22.28
39+
$22.01
49+
$21.74
74+
$21.47
99+
$20.13
199+
$19.86
249+
$19.59
499+
$19.32
999+
$18.79
Couldn't load pickup availability
Description
Description
|

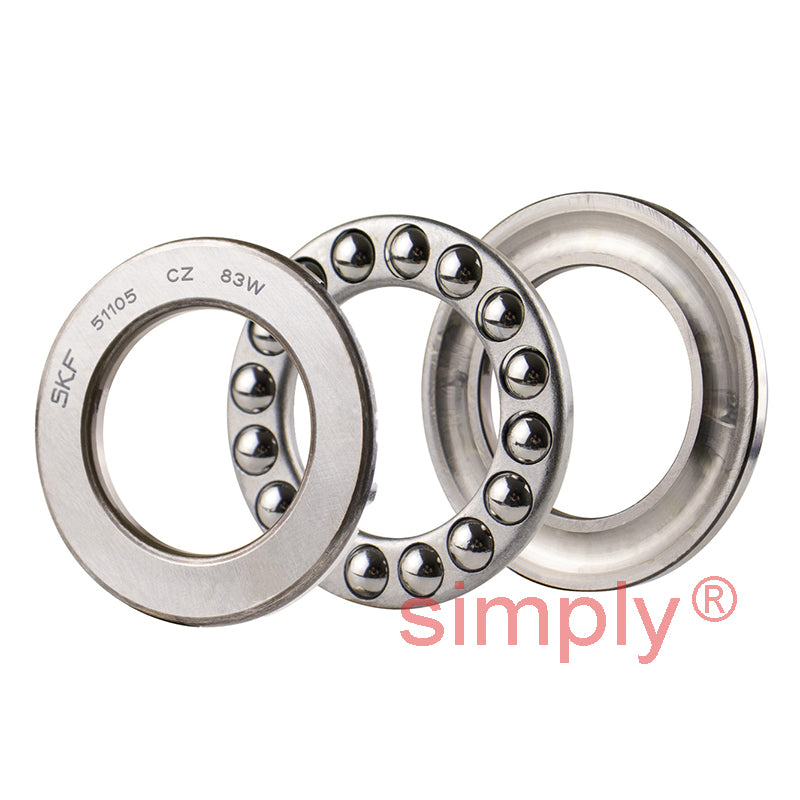

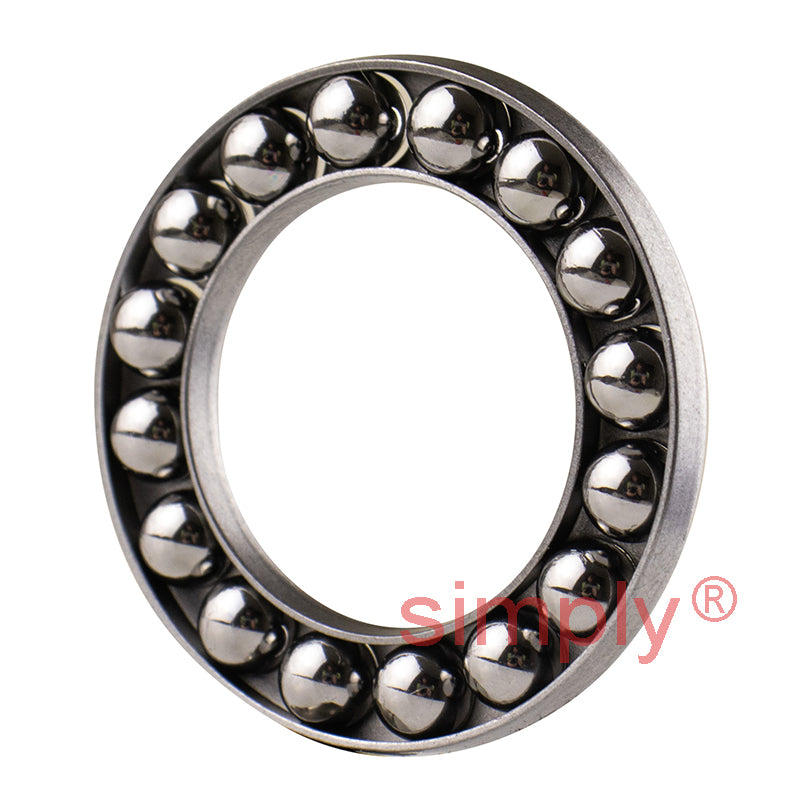

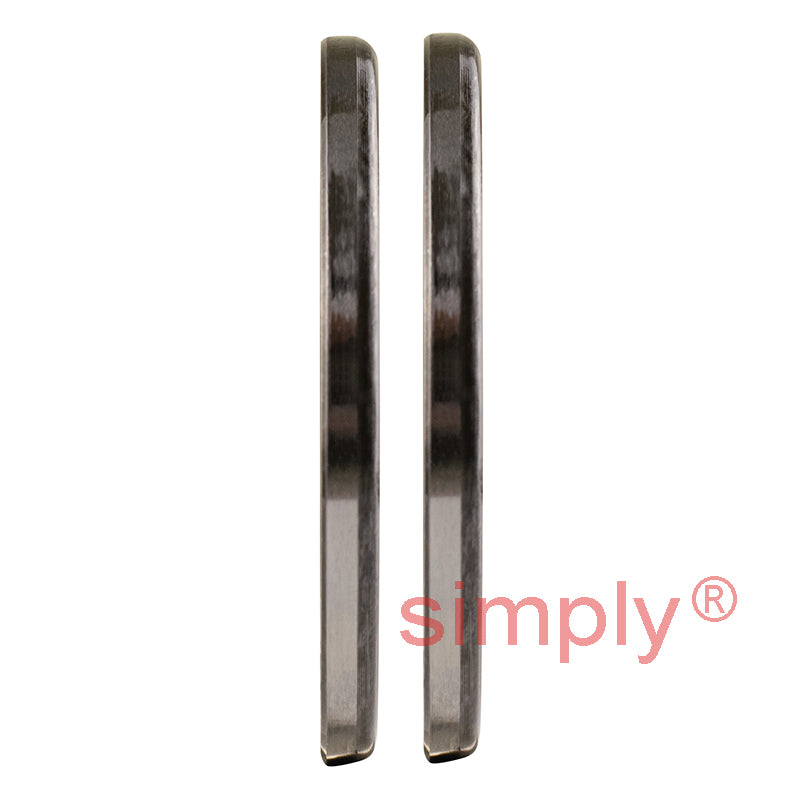

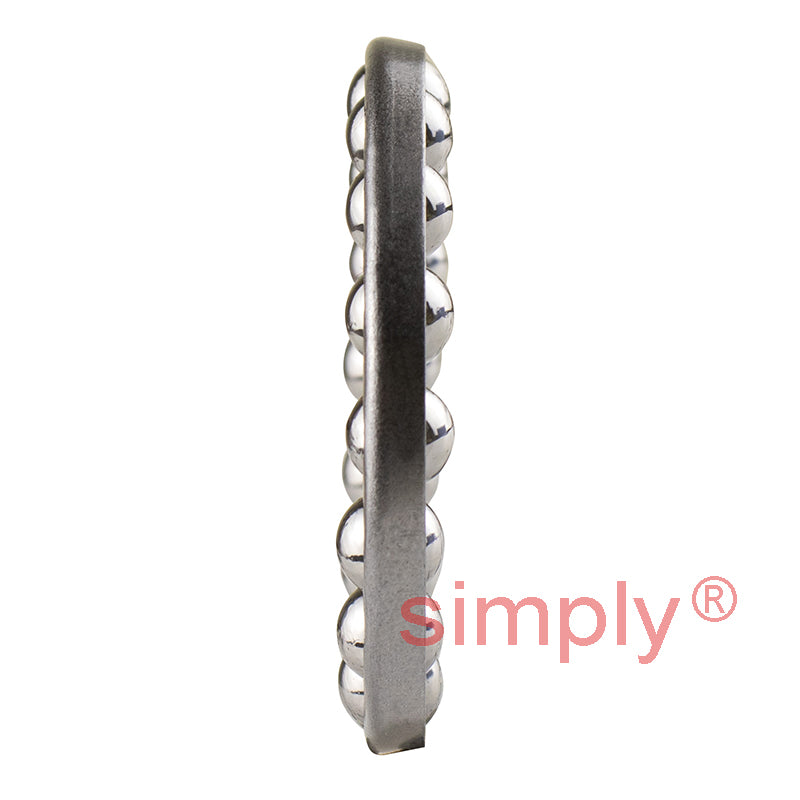

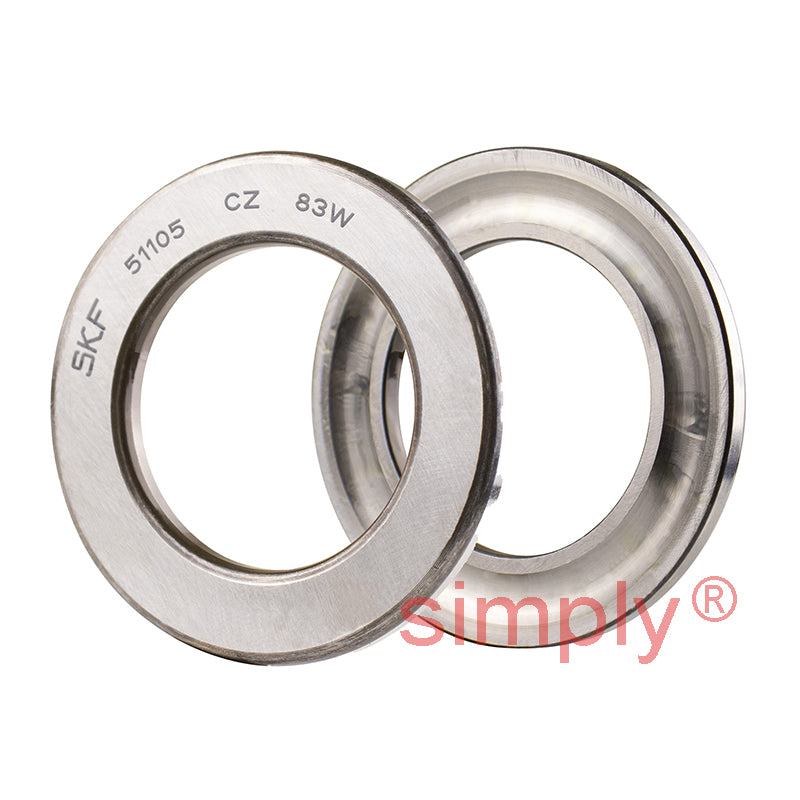

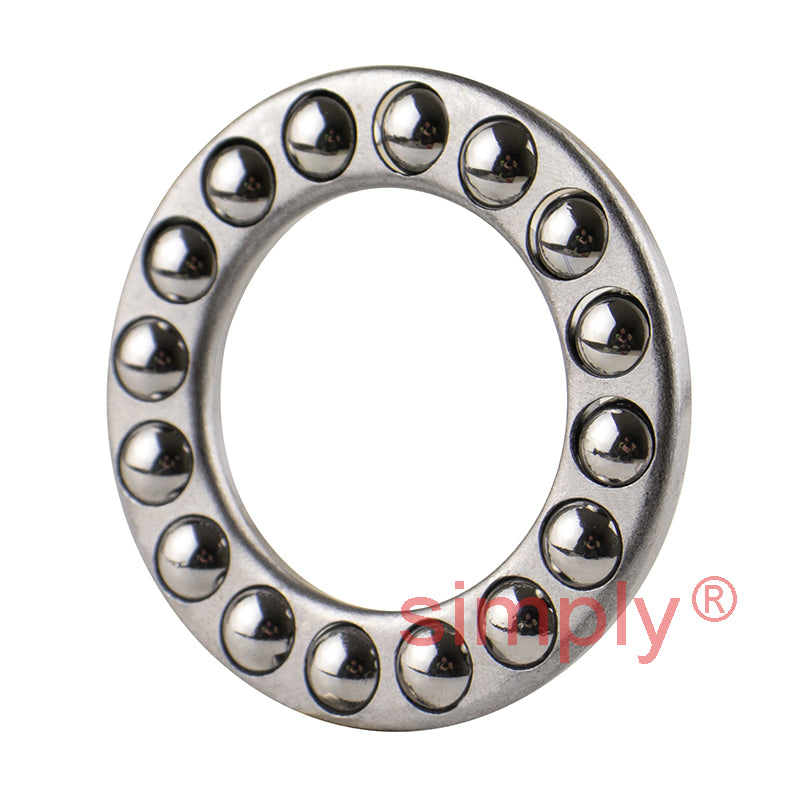

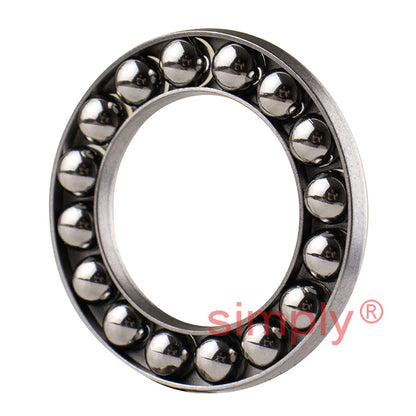

SKF Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 42mm
- Width:
- 11mm
Technical
Technical
| d | 25mm |
|---|---|
| D | 42mm |
| H | 11mm |
| Dynamic load C | 18.2 kN |
| Static load Co | 39 kN |
| Fatigue load limit Pu | 1.43 kN |
| Minimum load factor A | 0.0079 |
| Reference speed | 6300 rpm |
| Limiting speed | 9000 rpm |
| Weight | 0.056 kg |
| d1 | 42mm |
| D1 | 26mm |
| r1r2 min | 0.6mm |
| da min | 35mm |
| Da max | 32mm |
| ra max | 0.6mm |
