SKU: 50-3-NO26-MB
Branded 50-3-NO26 ANSI / AS Triplex Chain Connecting Link With Spring Clip 5/8 inch Pitch
Branded 50-3-NO26 ANSI / AS Triplex Chain Connecting Link With Spring Clip 5/8 inch Pitch
Regular price
$8.91
ex VAT
Regular price
Sale price
$8.91
ex VAT
Equivalent to: 50-3-CL
In stock
Price Break
10+
$7.93
19+
$7.48
29+
$7.40
39+
$7.31
49+
$7.22
74+
$7.13
99+
$6.68
199+
$6.59
249+
$6.50
499+
$6.42
999+
$6.24
Couldn't load pickup availability
Share this product
Description
Description

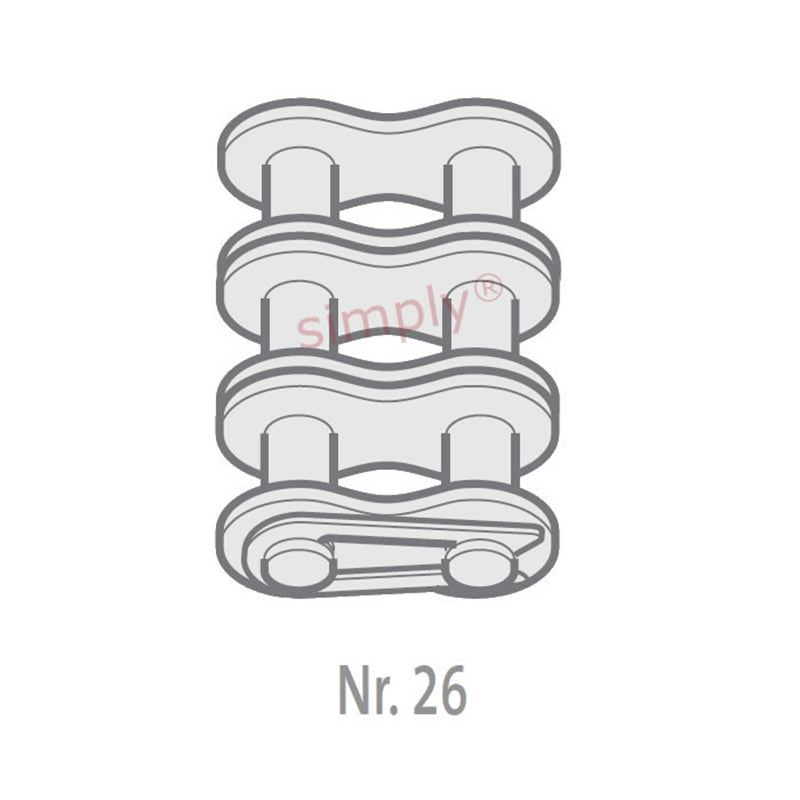

Branded CL / No. 26 ANSI Triplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins.
Equivalent: 50-3-CL
- Brand / Quality:
- Major Brand - High Quality
- Chain Pitch:
- 15.88mm = 0.625 (5/8) inch
Technical
Technical
| Pitch (A) | 0.625 inch |
|---|---|
| Pitch (A) | 15.875mm |
| Inside Width min (B) | 9.4mm |
| Roller Diameter max (C) | 10.16mm |
| Plate Height max (D) | 15.09mm |
| Plate Width Inner max (E) | 2mm |
| Plate Width Outer max (F) | 2mm |
| Pin Diameter max (G) | 5.08mm |
| Pin Length max (H1) | 57.5mm |
| Connecting Link Extension max (J) | 3.9mm |
| ISO606 Tensile Strength min | 65400 N |
| Weight | 18.11kg/m |
