SKU: 50-1-SD-NO26-RENOLD
Renold SD 50-1-NO26 ANSI / AS Simplex Chain Connecting Link With Spring Clip 5/8 inch Pitch
Renold SD 50-1-NO26 ANSI / AS Simplex Chain Connecting Link With Spring Clip 5/8 inch Pitch
Regular price
$8.79
ex VAT
Regular price
Sale price
$8.79
ex VAT
In stock
Price Break
10+
$7.82
19+
$7.38
29+
$7.30
39+
$7.21
49+
$7.12
74+
$7.03
99+
$6.59
199+
$6.50
249+
$6.42
499+
$6.33
999+
$6.15
Couldn't load pickup availability
Description
Description

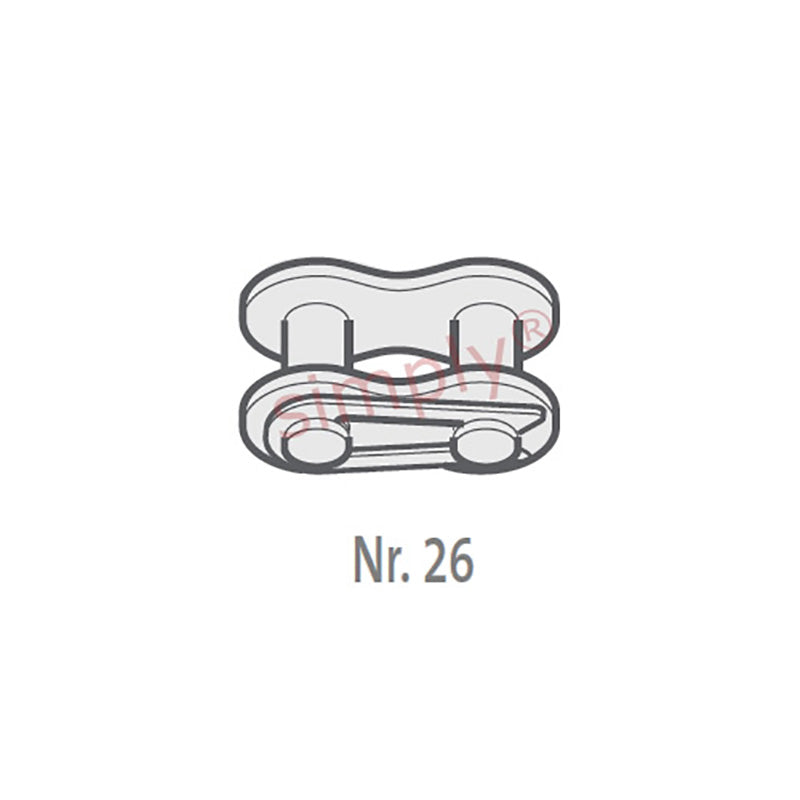

| Renold No. 26 ANSI Simplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 15.88mm = 0.625 (5/8) inch
Technical
Technical
| Pitch (A) | 0.625 inch |
|---|---|
| Pitch (A) | 15.875mm |
| Inside Width min (B) | 9.4mm |
| Roller Diameter max (C) | 10.16mm |
| Plate Height max (D) | 15.09mm |
| Plate Width Inner max (E) | 2mm |
| Plate Width Outer max (F) | 2mm |
| Pin Diameter max (G) | 5.08mm |
| Pin Length max (H1) | 20.9mm |
| Connecting Link Extension max (J) | 1.3mm |
| ISO606 Tensile Strength min | 21800 N |
| Weight | 0.015kg/m |
