SKU: 50-1-NO30-MB
Branded 50-1-NO30 ANSI / AS Simplex Chain Double Cranked Link 5/8 inch Pitch
Branded 50-1-NO30 ANSI / AS Simplex Chain Double Cranked Link 5/8 inch Pitch
Regular price
$10.16
ex VAT
Regular price
Sale price
$10.16
ex VAT
Equivalent to: 50-1-DOL
In stock
Price Break
10+
$9.04
19+
$8.53
29+
$8.43
39+
$8.33
49+
$8.23
74+
$8.13
99+
$7.62
199+
$7.52
249+
$7.42
499+
$7.32
999+
$7.11
Couldn't load pickup availability
Description
Description

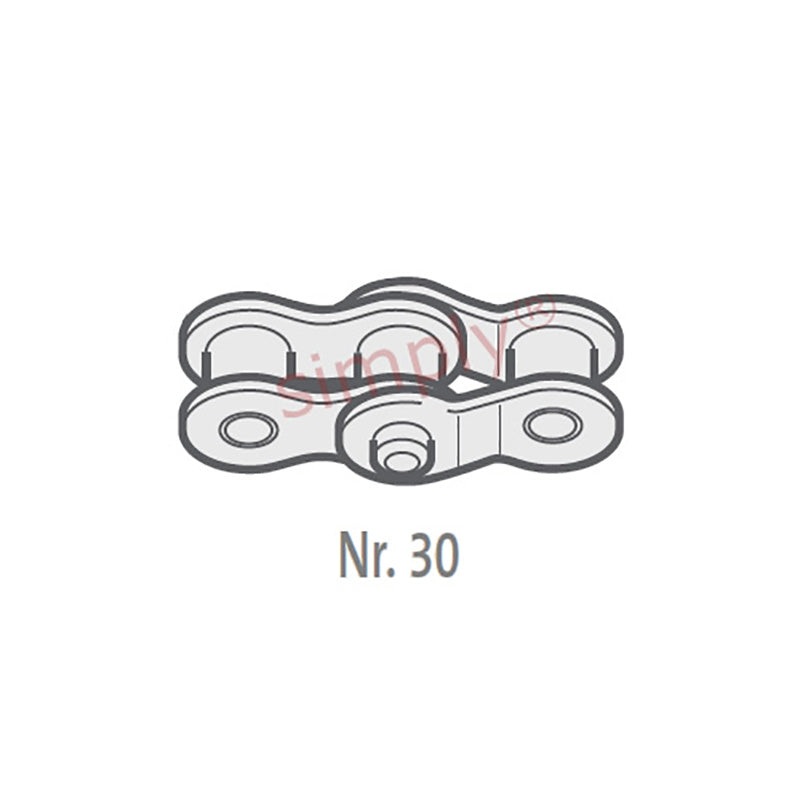

Branded DOL / No. 30 ANSI Simplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin.
Equivalent: 50-1-DOL
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 15.88mm = 0.625 (5/8) inch
Technical
Technical
| Pitch (A) | 0.625 inch |
|---|---|
| Pitch (A) | 15.875mm |
| Inside Width min (B) | 9.4mm |
| Roller Diameter max (C) | 10.16mm |
| Plate Height max (D) | 15.09mm |
| Plate Width Inner max (E) | 2mm |
| Plate Width Outer max (F) | 2mm |
| Pin Diameter max (G) | 5.08mm |
| Pin Length max (H1) | 20.9mm |
| Connecting Link Extension max (J) | 1.3mm |
| ISO606 Tensile Strength min | 21800 N |
| Weight | 0.015kg/m |
