SKU: 40-2-SD-NO12-RENOLD
Renold SD 40-2-NO12 ANSI / AS Duplex Chain Single Cranked Cottered Link 1/2 inch Pitch
Renold SD 40-2-NO12 ANSI / AS Duplex Chain Single Cranked Cottered Link 1/2 inch Pitch
Regular price
$17.26
ex VAT
Regular price
Sale price
$17.26
ex VAT
In stock
Price Break
2+
$8.15
5+
$7.69
10+
$7.60
29+
$7.51
49+
$7.42
75+
$7.33
100+
$6.87
200+
$6.78
250+
$6.69
500+
$6.60
1000+
$6.41
Description
Description

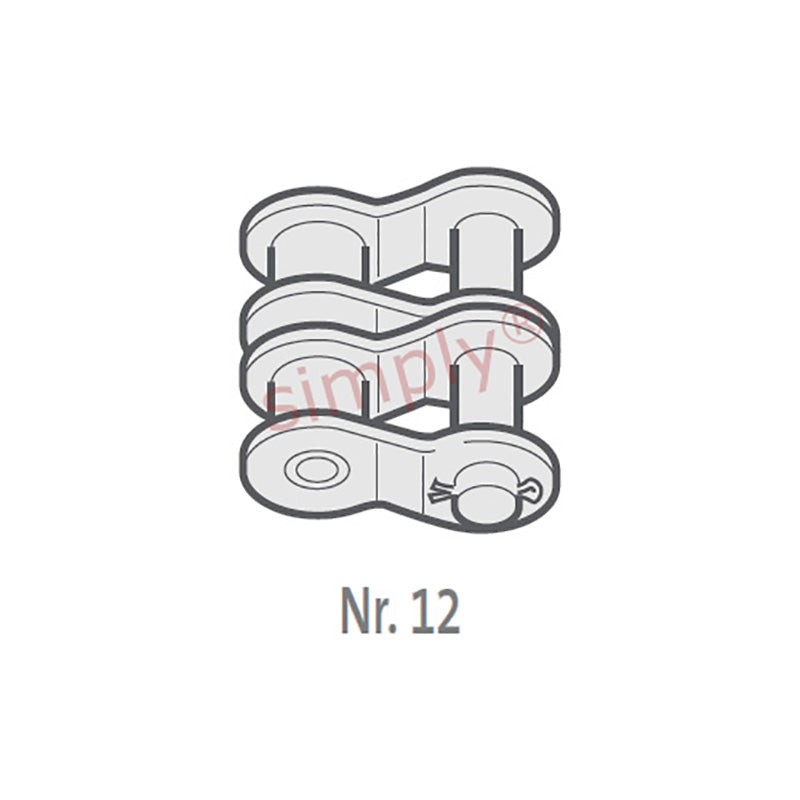

| Renold No. 12 ANSI Duplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 12.7mm = 0.5 (1/2) inch
Technical
Technical
| Pitch (A) | 0.5 inch |
|---|---|
| Pitch (A) | 12.7mm |
| Inside Width min (B) | 7.85mm |
| Roller Diameter max (C) | 7.95mm |
| Plate Height max (D) | 11.9mm |
| Plate Width Inner max (E) | 1.5mm |
| Plate Width Outer max (F) | 1.5mm |
| Pin Diameter max (G) | 3.96mm |
| Pin Length max (H2) | 31.1mm |
| Connecting Link Extension max (J) | 1.15mm |
| Transverse Pitch nom (K) | 14.38mm |
| ISO606 Tensile Strength min | 27800 N |
| Weight | 0.02kg/m |
