Renold SD 32B-3-NO12 BS Triplex Chain Single Cranked Cottered Link 2 inch Pitch
Renold SD 32B-3-NO12 BS Triplex Chain Single Cranked Cottered Link 2 inch Pitch
Regular price
$242.52
ex VAT
Regular price
Sale price
$242.52
ex VAT
In stock
Price Break
10+
$215.84
19+
$203.72
29+
$201.29
39+
$198.87
49+
$196.44
74+
$194.02
99+
$181.89
199+
$179.46
249+
$177.04
499+
$174.61
999+
$169.76
Couldn't load pickup availability
Description
Description

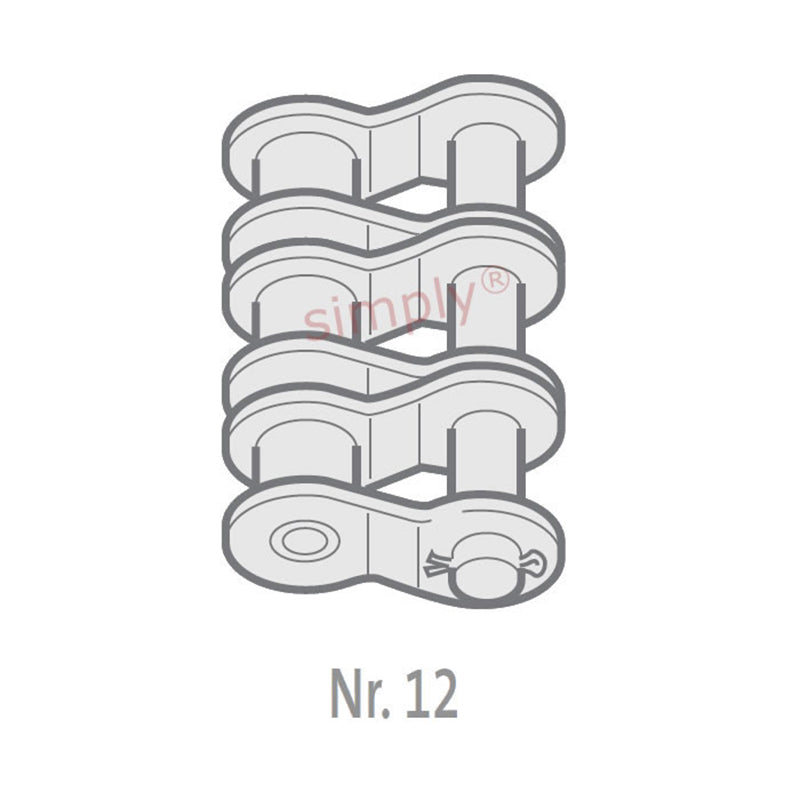

| Renold No. 12 European (BS) Triplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 50.8mm = 2 inch
Technical
Technical
| Pitch (A) | 2 inch |
|---|---|
| Pitch (A) | 50.8mm |
| Inside Width min (B) | 30.99mm |
| Roller Diameter max (C) | 29.21mm |
| Plate Height max (D) | 42.1mm |
| Plate Width Inner max (E) | 7.1mm |
| Plate Width Outer max (F) | 6.4mm |
| Pin Diameter max (G) | 17.81mm |
| Pin Length max (H1) | 179.4mm |
| Connecting Link Extension max (J) | 14.4mm |
| ISO606 Tensile Strength min | 725000 N |
| Weight | 0.5kg/m |
