SKU: 32B-2-NO11-MB
Branded 32B-2-NO11 BS Duplex Chain Cottered Connecting Link 2 inch Pitch
Branded 32B-2-NO11 BS Duplex Chain Cottered Connecting Link 2 inch Pitch
Regular price
$32.87
ex VAT
Regular price
Sale price
$32.87
ex VAT
Equivalent to: 32B-2-CL-COT 32B-2-CL
In stock
Price Break
2+
$15.52
5+
$14.65
10+
$14.48
29+
$14.30
49+
$14.13
75+
$13.95
100+
$13.08
200+
$12.91
250+
$12.73
500+
$12.56
1000+
$12.21
Description
Description

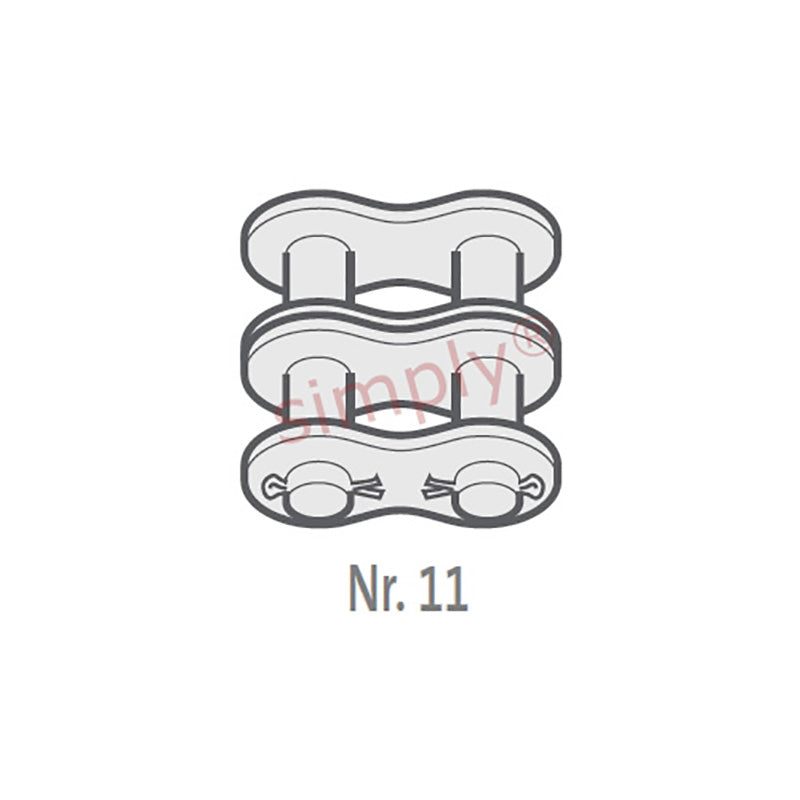

Dunlop COT / No. 11 European (BS) Duplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin.
Equivalent: 32B-2-CL-COT 32B-2-CL
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 50.8mm = 2 inch
Technical
Technical
| Pitch (A) | 2 inch |
|---|---|
| Pitch (A) | 50.8mm |
| Inside Width min (B) | 30.99mm |
| Roller Diameter max (C) | 29.21mm |
| Plate Height max (D) | 42.1mm |
| Plate Width Inner max (E) | 7.1mm |
| Plate Width Outer max (F) | 6.4mm |
| Pin Diameter max (G) | 17.81mm |
| Pin Length max (H2) | 124.6mm |
| Connecting Link Extension max (J) | 5mm |
| Transverse Pitch nom (K) | 58.55mm |
| ISO606 Tensile Strength min | 450000 N |
| Weight | 0.34kg/m |
