Branded 32B-1-NO12 BS Simplex Chain Single Cranked Cottered Link 2 inch Pitch
Branded 32B-1-NO12 BS Simplex Chain Single Cranked Cottered Link 2 inch Pitch
Regular price
$37.26
ex VAT
Regular price
Sale price
$37.26
ex VAT
Equivalent to: 32B-1-OL
In stock
Price Break
10+
$33.16
19+
$31.30
29+
$30.93
39+
$30.55
49+
$30.18
74+
$29.81
99+
$27.95
199+
$27.57
249+
$27.20
499+
$26.83
999+
$26.08
Couldn't load pickup availability
Description
Description

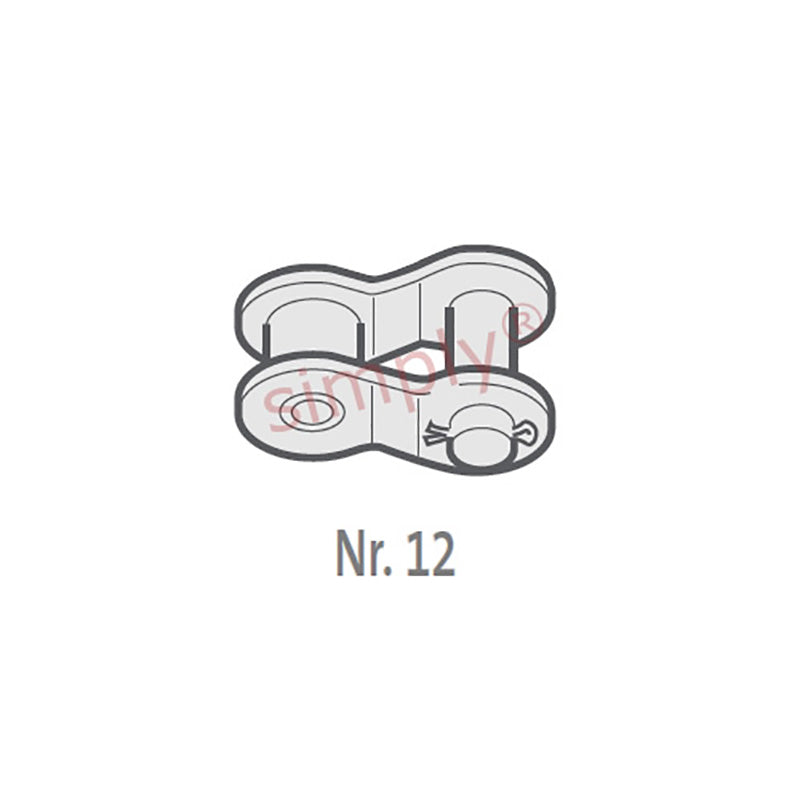

Branded OL / No. 12 European (BS) Simplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin.
Equivalent: 32B-1-OL
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 50.8mm = 2 inch
Technical
Technical
| Pitch (A) | 2 inch |
|---|---|
| Pitch (A) | 50.8mm |
| Inside Width min (B) | 30.99mm |
| Roller Diameter max (C) | 29.21mm |
| Plate Height max (D) | 42.1mm |
| Plate Width Inner max (E) | 7.1mm |
| Plate Width Outer max (F) | 6.4mm |
| Pin Diameter max (G) | 17.81mm |
| Pin Length max (H1) | 66.2mm |
| Connecting Link Extension max (J) | 4.8mm |
| ISO606 Tensile Strength min | 250000 N |
| Weight | 0.16kg/m |
