SKU: 32B-1-BB-NO11-RENOLD
Renold Blue Box 32B-1-NO11 BS Simplex Cottered Connecting Link 2 inch Pitch
Renold Blue Box 32B-1-NO11 BS Simplex Cottered Connecting Link 2 inch Pitch
Regular price
$119.67
ex VAT
Regular price
Sale price
$119.67
ex VAT
In stock
Price Break
10+
$106.51
19+
$100.52
29+
$99.33
39+
$98.13
49+
$96.93
74+
$95.74
99+
$89.75
199+
$88.56
249+
$87.36
499+
$86.16
999+
$83.77
Couldn't load pickup availability
Description
Description

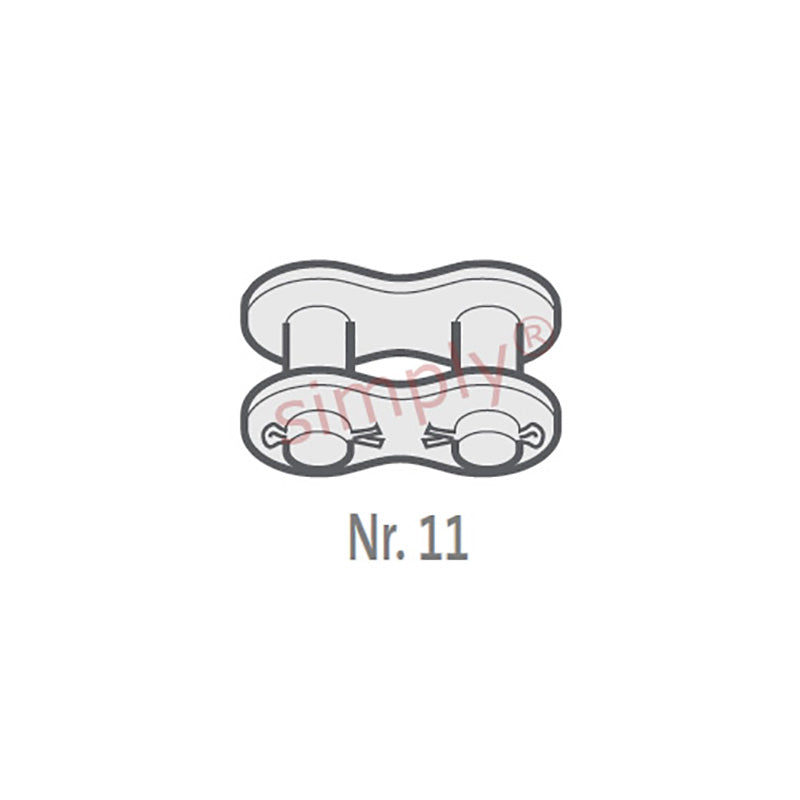

| Renold No. 11 European (BS) Simplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 50.8mm = 2 inch
Technical
Technical
| Pitch (A) | 2 inch |
|---|---|
| Pitch (A) | 50.8mm |
| Inside Width min (B) | 30.99mm |
| Roller Diameter max (C) | 29.21mm |
| Plate Height max (D) | 42.29mm |
| Plate Width Inner max (E) | 7.11mm |
| Plate Width Outer max (F) | 6.35mm |
| Pin Diameter max (G) | 17.81mm |
| Pin Length max (H1) | 63.4mm |
| Connecting Link Extension max (J) | 8mm |
| ISO606 Tensile Strength min | 250000 N |
| Weight | 0.16kg/m |
