SKU: 31313-MB

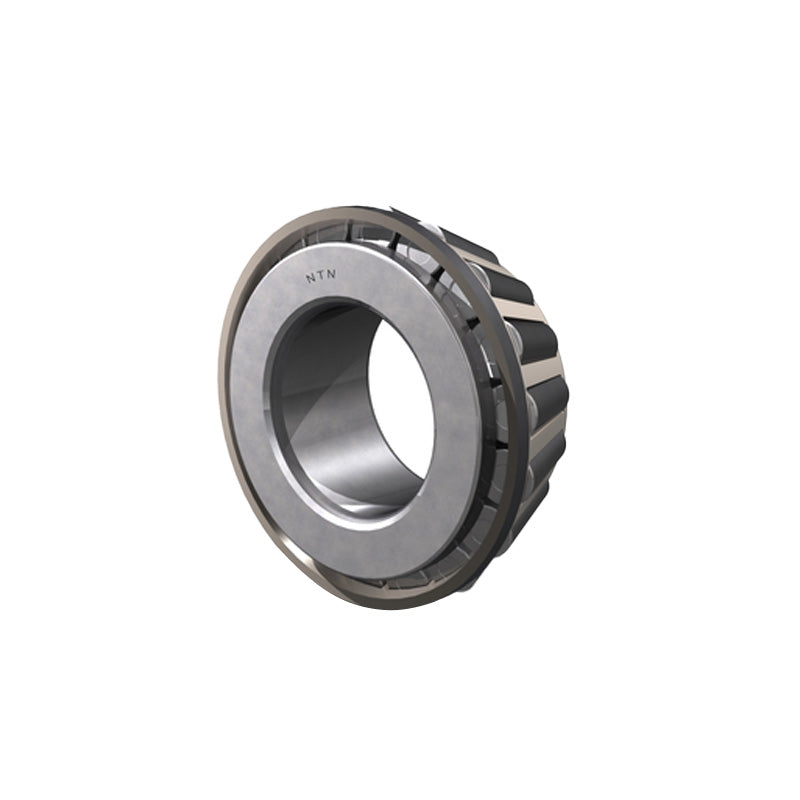

Major Brand 31313 Metric Taper Roller Bearing 65x140x36mm
Major Brand 31313 Metric Taper Roller Bearing 65x140x36mm
Regular price
$89.51
ex VAT
Regular price
Sale price
$89.51
ex VAT
In stock
Price Break
10+
$42.28
19+
$39.90
29+
$39.43
39+
$38.95
49+
$38.48
74+
$38.00
99+
$35.63
199+
$35.15
249+
$34.68
499+
$34.20
999+
$33.25
Description
Description
|
Metric Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer). Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 140mm
- Width:
- 36mm
- Seals / Shields:
- None
Technical
Technical
| d | 65mm |
|---|---|
| D | 140mm |
| T | 36mm |
| Dynamic load | 165 kN |
| Static load | 193 kN |
| Fatigue load limit Pu | 23.6 kN |
| Reference speed | 3200 rpm |
| Limiting speed | 4800 rpm |
| Mass | 2.35 kg |
| d1 | 103mm |
| B | 33mm |
| C | 23mm |
| r1r2 min | 3mm |
| r3r4 min | 2.5mm |
| a | 42mm |
| da max | 80mm |
| db min | 77mm |
| Da min | 111mm |
| Da max | 128mm |
| Db min | 132mm |
| Ca min | 5mm |
| Cb min | 13mm |
| ra max | 2.5mm |
| rb max | 2mm |
| e | 0.83 |
| Y | 0.72 |
| Y0 | 0.4 |
