SKU: 305802C-2Z-SKF

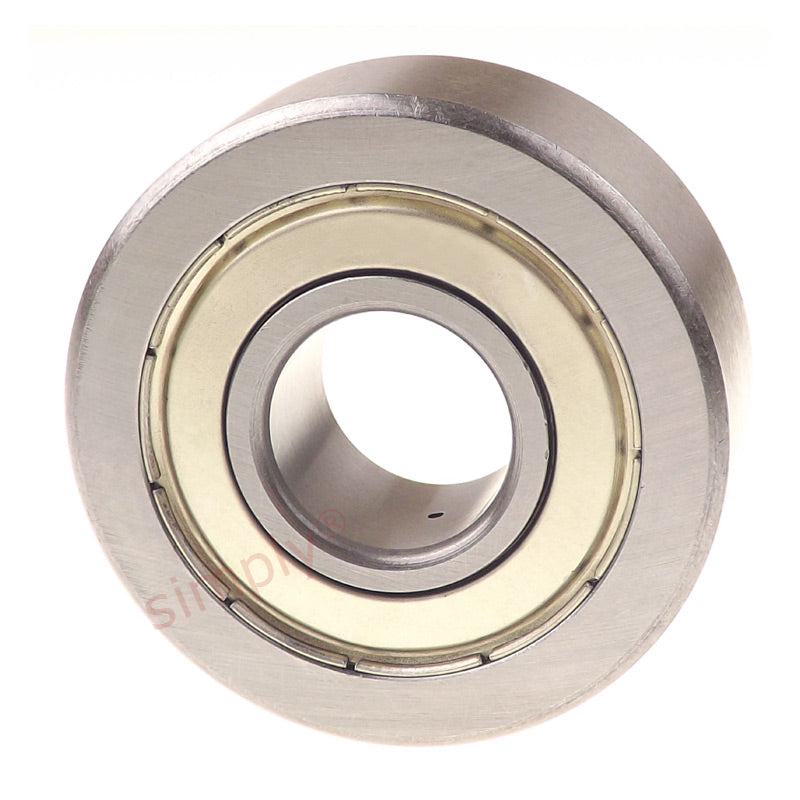

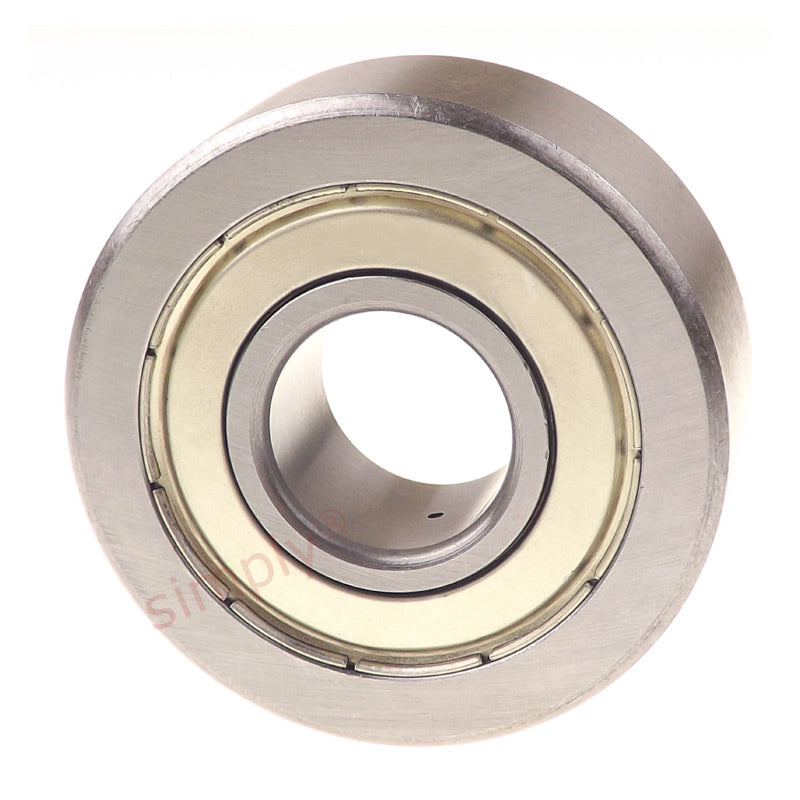

SKF 305802C2Z Double Row Cam Roller Bearing with Crowned Running Surface 15x40x15.9mm
SKF 305802C2Z Double Row Cam Roller Bearing with Crowned Running Surface 15x40x15.9mm
Regular price
$66.33
ex VAT
Regular price
Sale price
$66.33
ex VAT
In stock
Price Break
10+
$31.33
19+
$29.57
29+
$29.22
39+
$28.86
49+
$28.51
74+
$28.16
99+
$26.40
199+
$26.05
249+
$25.70
499+
$25.34
999+
$24.64
Share this product
Description
Description
|
SKF Double Row Cam Rollers: Are special variants of deep groove ball bearings which have thicker outer races to allow for running in tracks as rollers where misalignment and shock loads may be present. They have the same characteristics as normal deep groove ball bearings, generally have seals although some unsealed versions are available and can also be used in place of standard bearings. They are available with parallel outside diameter or crowned (spherical) for applications where greater misalignment needs to be catered for. Benefits: Tolerate high loads, shock loads, misalignment when running in tracks |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 40mm
- Width:
- 15.9mm
- Seals / Shields:
- Metal Shielded
Technical
Technical
| d | 15mm |
|---|---|
| D | 40mm |
| B | 15.9mm |
| d1 | 22.1mm |
| D1 | 30.7mm |
| r1r2 min | 0.6mm |
| a | 18mm |
| Limiting speed | 8500 rpm |
| Mass | 0.1 kg |
| Dynamic load C | 10.6 kN |
| Static load Co | 5.85 kN |
| Fatigue load limit Pu | 0.25 kN |
| Max radial load | 5.85 kN |
| Max static load | 8.5 kN |
