SKU: 30309-NKE

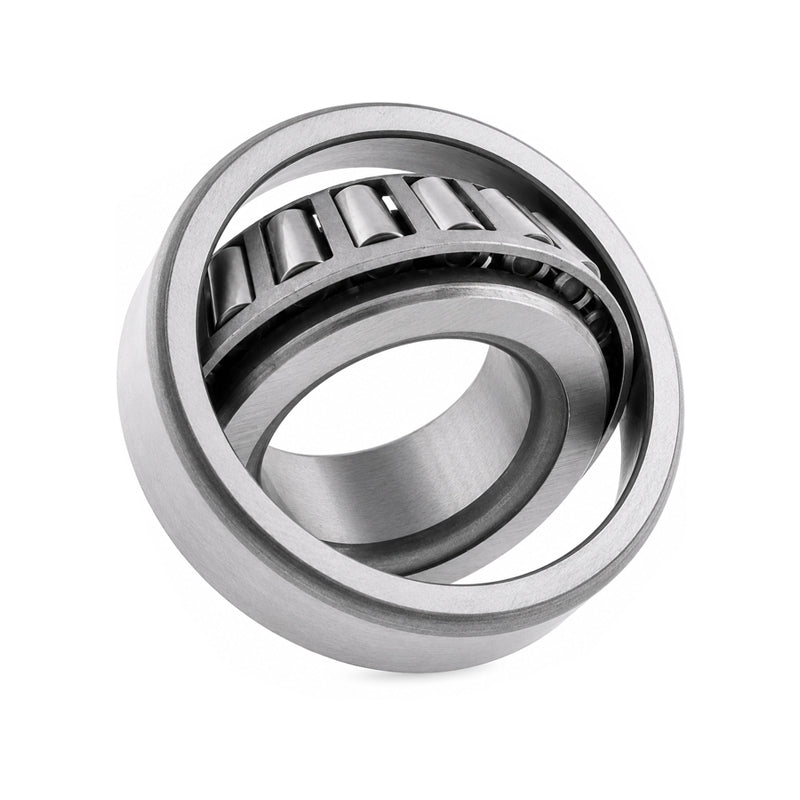

NKE 30309 Tapered Roller Bearing Cup and Cone Set 45x100x27.25mm - Allow 1-2 Days - Contact Us For Faster Delivery
NKE 30309 Tapered Roller Bearing Cup and Cone Set 45x100x27.25mm - Allow 1-2 Days - Contact Us For Faster Delivery
Regular price
$42.91
ex VAT
Regular price
Sale price
$42.91
ex VAT
Low stock
Price Break
10+
$20.27
19+
$19.13
29+
$18.90
39+
$18.67
49+
$18.44
74+
$18.22
99+
$17.08
199+
$16.85
249+
$16.62
499+
$16.39
999+
$15.94
Description
Description
Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- NKE - HIgh Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 100mm
- Width:
- 27.25mm
- Seals / Shields:
- None
Technical
Technical
| d | 45mm |
|---|---|
| D | 100mm |
| T | 27.25mm |
| Dynamic load C | 108 kN |
| Static load Co | 120 kN |
| Fatigue load limit Pu | 14.3 kN |
| Reference speed | 5300 rpm |
| Limiting speed | 7000 rpm |
| Weight | 0.97 kg |
| d1 | 70.1mm |
| B | 25mm |
| C | 22mm |
| r1r2 min | 2mm |
| r3r4 min | 1.5mm |
| a | 21mm |
| da max | 59mm |
| db min | 53mm |
| Da min | 86mm |
| Da max | 91mm |
| Db min | 92mm |
| Ca min | 3mm |
| Cb min | 5mm |
| ra max | 2mm |
| rb max | 1.5mm |
| e | 0.35 |
| Y | 1.7 |
| Y0 | 0.9 |
