SKU: 300H-075-60

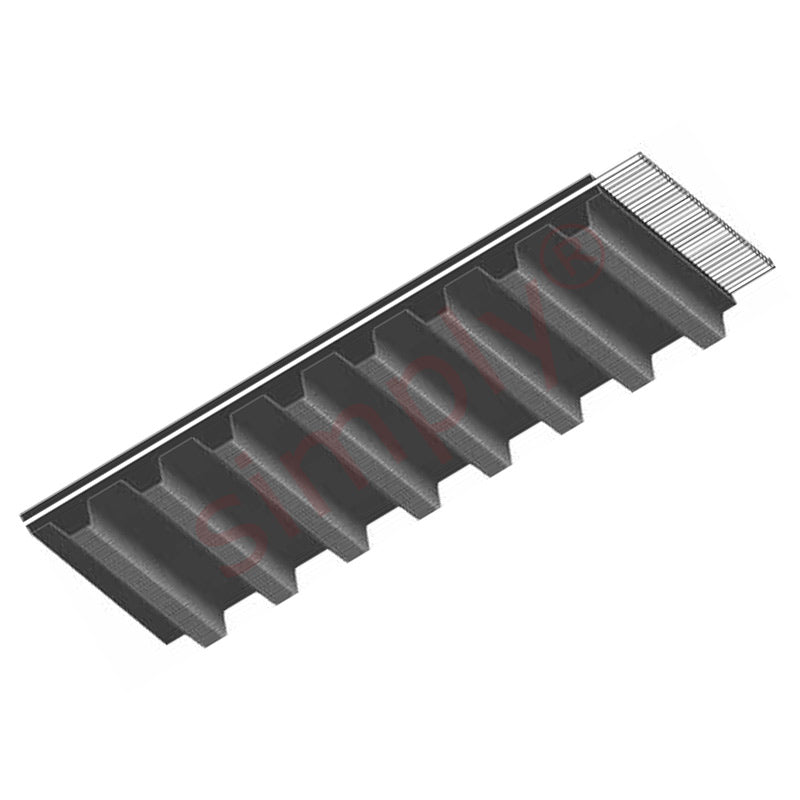

Major Brand 300H075 Synchronous Toothed Belt 0.75 inch Wide 30 inch Length 60 Teeth
Major Brand 300H075 Synchronous Toothed Belt 0.75 inch Wide 30 inch Length 60 Teeth
Regular price
$17.56
ex VAT
Regular price
Sale price
$17.56
ex VAT
In stock
Price Break
10+
$15.63
19+
$14.75
29+
$14.57
39+
$14.40
49+
$14.22
74+
$14.05
99+
$13.17
199+
$12.99
249+
$12.82
499+
$12.64
999+
$12.29
Couldn't load pickup availability
Description
Description
|
Synchronous Drive Belts: Power transmission belts have become a valuable element of synchronous
transmission throughout the entire field of drive technology. They enable
purpose-made solutions to be realized effectively and economically. Thanks to their high flexibility synchronous drive belts enable low-cost design, even with difficult drive system requirements such as high transmission ratios, high belt speeds, small pulley diameters and back tensioning rollers. Benefits: Synchronised drive, Outstanding resistance to fatigue and deformation, as well as a good resistance to environmental influences, temperature extremes and ageing, are all factors which give the user high service reliability and freedom from maintenance. |
- Brand / Quality:
- Major Brand - High Quality
- Belt Width Approx:
- 19.05mm = 3/4 inch
- Belt Depth Approx:
- 4.3mm
- Belt Length Approx:
- 762mm = 30 inch
- Number of Teeth:
- 60
Technical
Technical

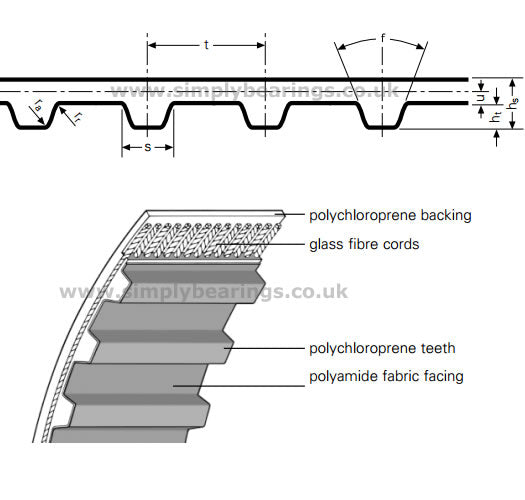

| Belt width | 0.75 inch = 19.05mm |
|---|---|
| Pitch length | 30 inch = 762mm |
| Number of teeth | 60 |
| Tooth pitch t | 0.5 inch |
| Flank angle f | 40 degrees |
| Tooth height h<sub>t</sub> | 0.09015748 inch |
| Pitch zone u | 0.027007874 inch |
