SKU: 3001.2RS.EU

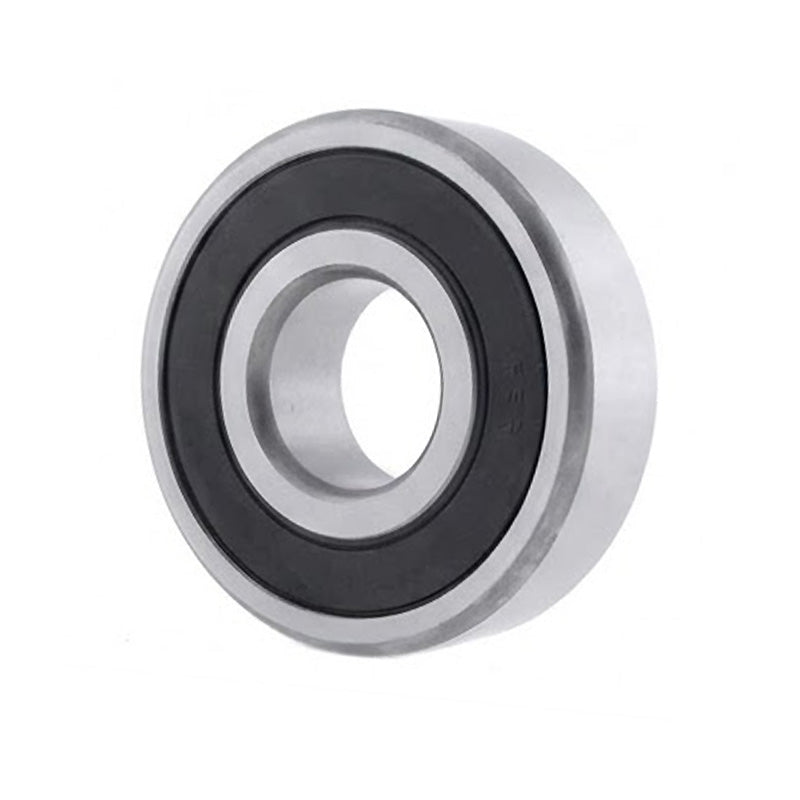

Budget 30012RSEU Rubber Sealed Double Row Angular Contact Ball Bearing 12x28x12mm
Budget 30012RSEU Rubber Sealed Double Row Angular Contact Ball Bearing 12x28x12mm
Regular price
$20.09
ex VAT
Regular price
Sale price
$20.09
ex VAT
Equivalent to: 5001
In stock
Price Break
10+
$9.48
19+
$8.95
29+
$8.84
39+
$8.74
49+
$8.63
74+
$8.53
99+
$7.99
199+
$7.89
249+
$7.78
499+
$7.67
999+
$7.46
Share this product
Description
Description
Rubber Sealed Double Row Angular Contact Ball Bearings: Correspond to the design of two single row angular contact ball bearings side by side but occupying less space. They can accommodate radial loads as well as axial loads acting in both directions. They provide a rigid bearing arrangement and accommodate tilting moments well
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 5001
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 5001
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 28mm
- Width:
- 12mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 12mm |
|---|---|
| D | 28mm |
| B | 12mm |
| a | 13mm |
| r min | 0.3mm |
| Contact angle ? | 25° |
| Weight | 0.035 kg |
| Dynamic load Cr | 6200 N |
| Static load Cor | 3750 N, |
| Limiting Speed | 13000 rpm |
