SKU: 3000-2RS-EU

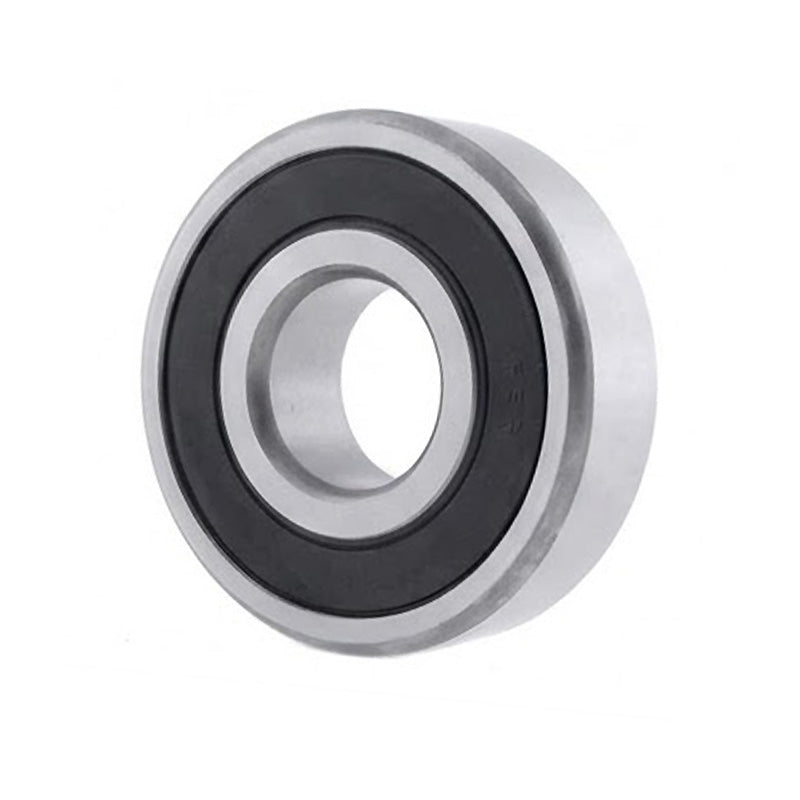

Budget 30002RS Rubber Sealed Double Row Angular Contact Ball Bearing 10x26x12mm
Budget 30002RS Rubber Sealed Double Row Angular Contact Ball Bearing 10x26x12mm
Regular price
$19.15
ex VAT
Regular price
Sale price
$19.15
ex VAT
Equivalent to: 3000B2RSTVH
In stock
Price Break
10+
$9.05
19+
$8.54
29+
$8.44
39+
$8.33
49+
$8.23
74+
$8.13
99+
$7.62
199+
$7.52
249+
$7.42
499+
$7.32
999+
$7.11
Share this product
Description
Description
Rubber Sealed Double Row Angular Contact Ball Bearings: Correspond to the design of two single row angular contact ball bearings side by side but occupying less space. They can accommodate radial loads as well as axial loads acting in both directions. They provide a rigid bearing arrangement and accommodate tilting moments well
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 3000B2RSTVH
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 3000B2RSTVH
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 26mm
- Width:
- 12mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 10mm |
|---|---|
| D | 26mm |
| B | 12mm |
| a | 12.6mm |
| d2 | 14.2mm |
| D2 | 21.2mm |
| da min | 12mm |
| Da max | 24mm |
| ra max | 0.3mm |
| r min | 0.3mm |
| Contact angle | 25 degrees |
| Basic Dynamic Load Raiting | 5700 N |
| Basic Static Load Raiting | 3200 N |
| Fatigue Load Limit | 166 N |
| Limiting Speed | 18100 rpm |
| Weight | 0.022 kg |
