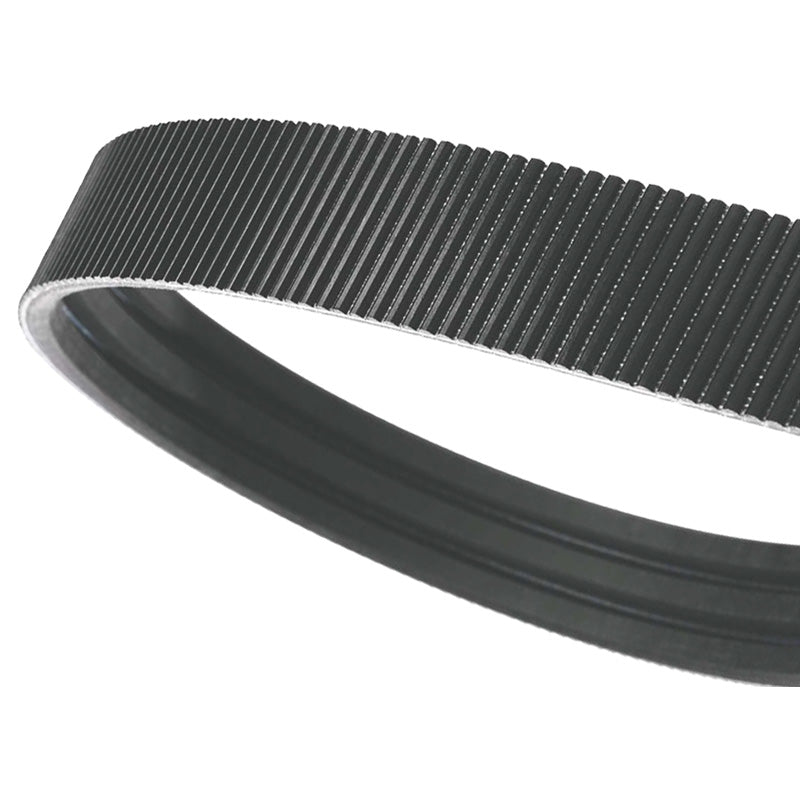

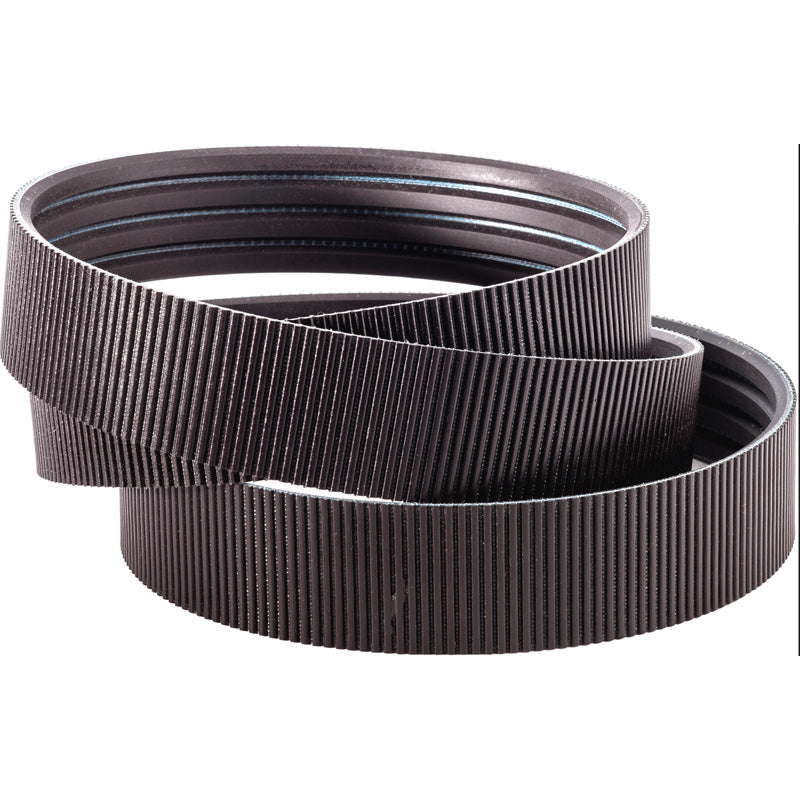

Gates 3/5M615JB Polyflex JB Polyurethane Joined V-Belt

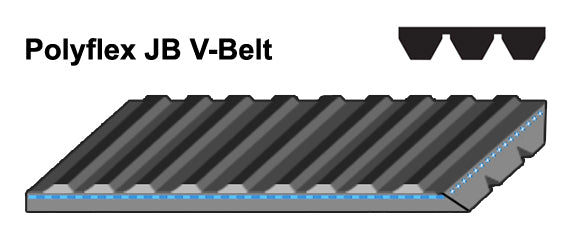

Gates Polyflex JB Joined V-Belts: These belts provide more load-carrying capacity at higher speeds to small multiple V-Belt precision drives. These belts are made from a high modulus polyurethane compound which allows further resistance to fatigue, wear ozone and most other environmental conditions. The material also provides further adhesion to the tensile cords. The ribbed backing on these belts provide greater lateral stability and relives stress when bent. These belts are recommended for use on bench type milling machines, lathe drives, woodwork and metalworking machine spindle drives, computer peripheral equipment and small blowers.

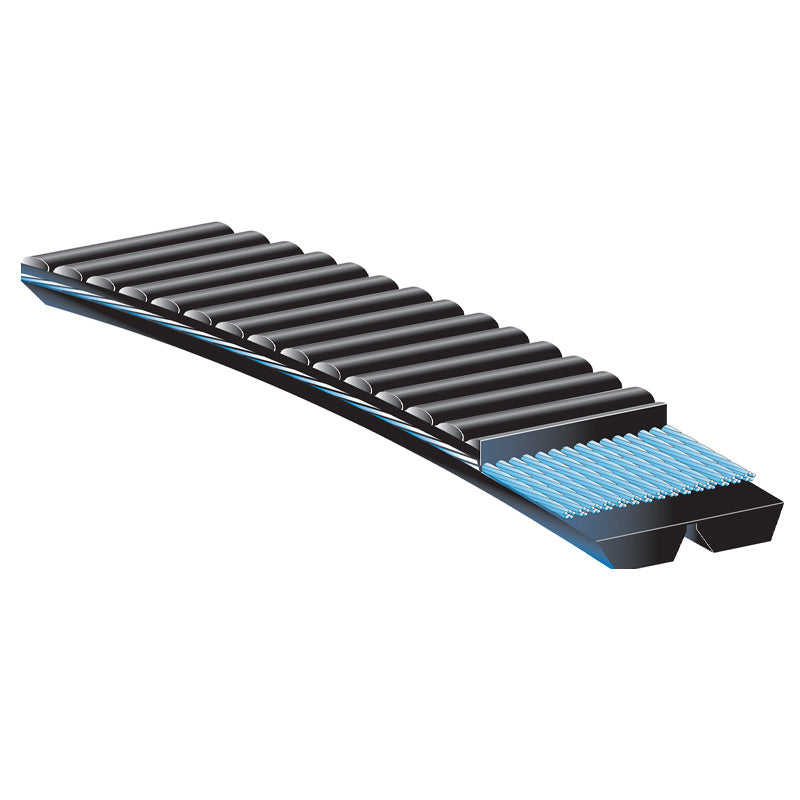

Benefits: Excellent adhesion of tensile cords, high fatigue resistance, long belt life, ribbed to relive bending stress, precise cating eliminates overlap and layers, provides high performance for precision applications, joined belt construction to improve stability, capable of shaft speeds up to 30,000 rpm.

Brand / Quality:

Gates - High Quality

Belt Number:

3/5M615JB

Inside Length Approx:

615mm = 24.21 inch

Outside Length Approx:

620mm = 24.42 inch

Belt Width Approx:

15mm = 0.591 inch
