SKU: 285L-075-76

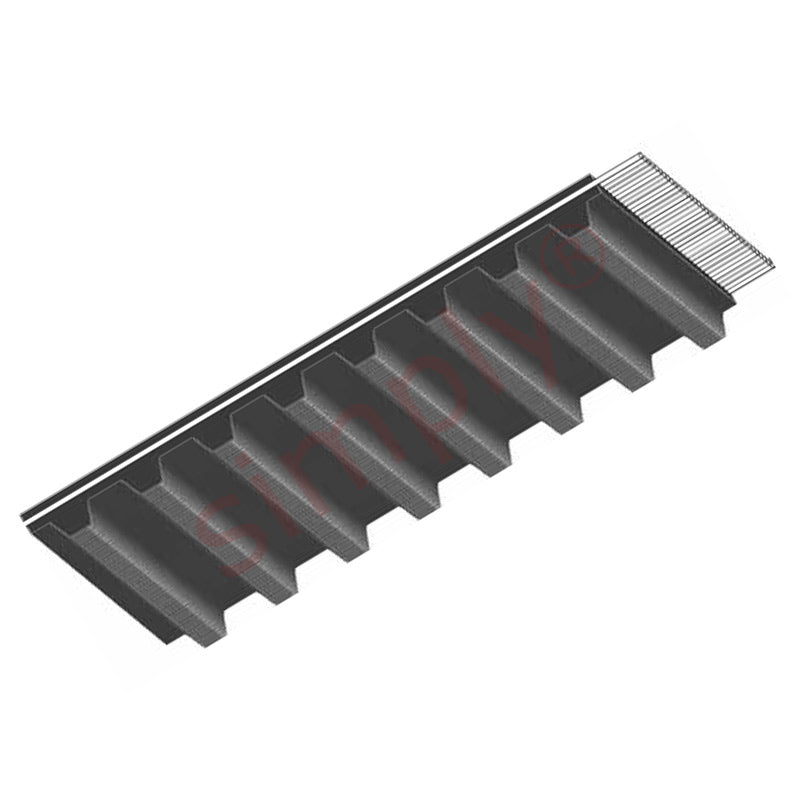

Major Brand 285L075 Synchronous Toothed Belt 0.75 inch Wide 28.5 inch Length 76 Teeth
Major Brand 285L075 Synchronous Toothed Belt 0.75 inch Wide 28.5 inch Length 76 Teeth
Regular price
$16.77
ex VAT
Regular price
Sale price
$16.77
ex VAT
In stock
Price Break
3+
$7.92
5+
$7.48
10+
$7.39
15+
$7.30
20+
$7.21
30+
$7.12
40+
$6.68
50+
$6.59
60+
$6.50
75+
$6.41
100+
$6.23
Description
Description
|
Synchronous Drive Belts: Power transmission belts have become a valuable element of synchronous
transmission throughout the entire field of drive technology. They enable
purpose-made solutions to be realized effectively and economically. Thanks to their high flexibility synchronous drive belts enable low-cost design, even with difficult drive system requirements such as high transmission ratios, high belt speeds, small pulley diameters and back tensioning rollers. Benefits: Synchronised drive, Outstanding resistance to fatigue and deformation, as well as a good resistance to environmental influences, temperature extremes and ageing, are all factors which give the user high service reliability and freedom from maintenance. |
- Brand / Quality:
- Major Brand - High Quality
- Belt Width Approx:
- 19.05mm = 3/4 inch
- Belt Depth Approx:
- 3.6mm
- Belt Length Approx:
- 723.9mm = 28.5 inch
- Number of Teeth:
- 76
Technical
Technical
| Belt width | 0.75 inch = 19.05mm |
|---|---|
| Pitch length | 28.5 inch = 723.9mm |
| Number of teeth | 76 |
| Tooth pitch t | 0.375 inch |
| Flank angle f | 40 degrees |
| Tooth height h<sub>t</sub> | 0.07519685 inch |
| Pitch zone u | 0.015 inch |
