SKU: 27x35x5_UOP_NAK

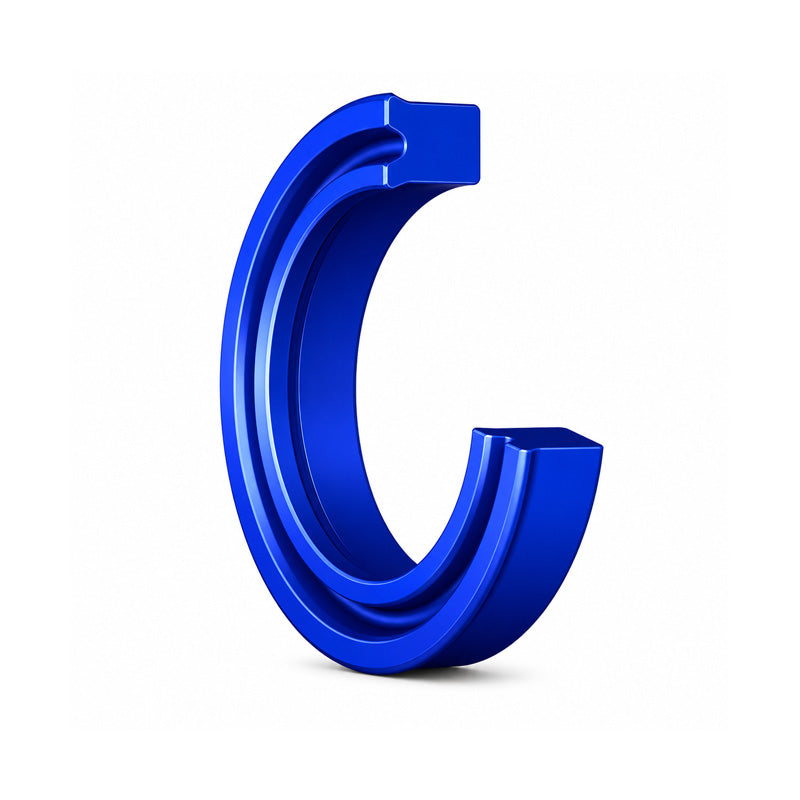

NAK 27x35x5mm UOP Polyurethane Piston Seal - Allow 7-10 Days
NAK 27x35x5mm UOP Polyurethane Piston Seal - Allow 7-10 Days
Regular price
$6.34
ex VAT
Regular price
Sale price
$6.34
ex VAT
Allow 7-10 Days
In stock
Price Break
10+
$5.64
19+
$5.33
29+
$5.26
39+
$5.20
49+
$5.14
74+
$5.07
99+
$4.76
199+
$4.69
249+
$4.63
499+
$4.56
999+
$4.44
Couldn't load pickup availability
Share this product
Description
Description
NAK UOP Piston Seals: The UOP piston seal from NAK is a high-performance, dual-lip polyurethane seal designed for use in dynamic hydraulic applications. Engineered for installation in both single-acting and double-acting cylinders, it delivers outstanding sealing performance, low friction, and long-term fluid retention under a wide range of pressures and operating conditions.
Benefits: Easy installation, stable performance under fluctuating pressures, excellent sealing efficiency
- Brand / Quality:
- NAK - High Quality
- Inside Diameter:
- 27mm
- Outside Diameter:
- 35mm
- Length:
- 5mm
- Material:
- Polyurethane
- Style:
- UOP
- Colour:
- Blue
Technical
Technical
| d | 27mm |
|---|---|
| D | 35mm |
| L | 5.7mm |
| h | 5mm |
| C | 2mm |
| Inside Diameter Tolerance | h10 |
| Outside Diameter Tolerance | H9 |
| Length Tolerance | 0.2mm |
| Pressure (max) | 40 Mpa |
| Sliding Speed (max) | 0.5 m/s |
| Temperature | -40 Deg C to +100 Deg C |
| Colour | Blue |
