SKU: 270H-075-54

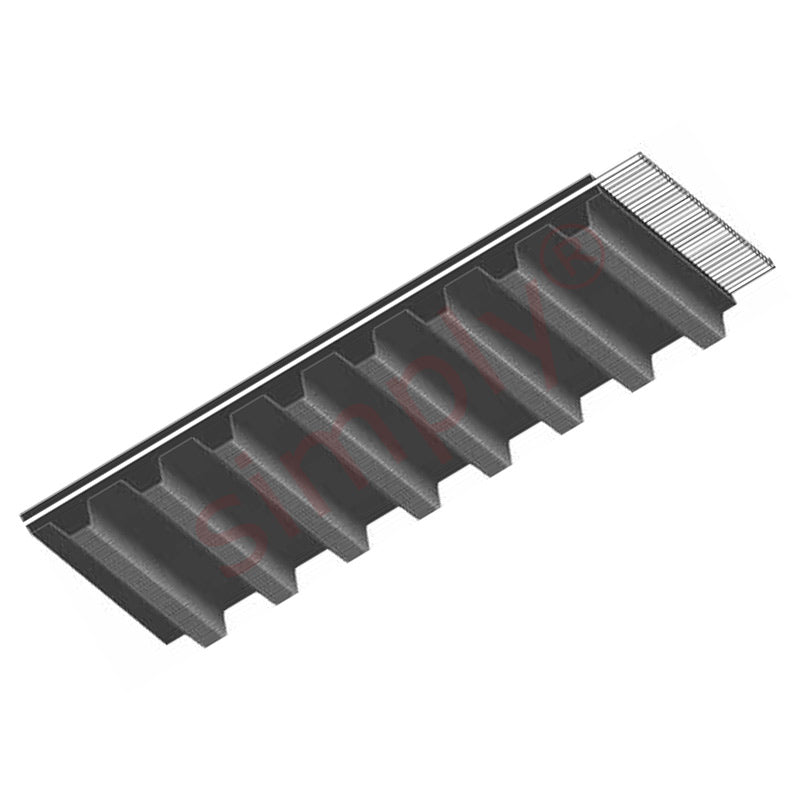

Major Brand 270H075 Synchronous Toothed Belt 0.75 inch Wide 27 inch Length 54 Teeth
Major Brand 270H075 Synchronous Toothed Belt 0.75 inch Wide 27 inch Length 54 Teeth
Regular price
$16.80
ex VAT
Regular price
Sale price
$16.80
ex VAT
In stock
Price Break
10+
$14.95
19+
$14.11
29+
$13.94
39+
$13.78
49+
$13.61
74+
$13.44
99+
$12.60
199+
$12.43
249+
$12.26
499+
$12.10
999+
$11.76
Couldn't load pickup availability
Description
Description
|
Synchronous Drive Belts: Power transmission belts have become a valuable element of synchronous
transmission throughout the entire field of drive technology. They enable
purpose-made solutions to be realized effectively and economically. Thanks to their high flexibility synchronous drive belts enable low-cost design, even with difficult drive system requirements such as high transmission ratios, high belt speeds, small pulley diameters and back tensioning rollers. Benefits: Synchronised drive, Outstanding resistance to fatigue and deformation, as well as a good resistance to environmental influences, temperature extremes and ageing, are all factors which give the user high service reliability and freedom from maintenance. |
- Brand / Quality:
- Major Brand - High Quality
- Belt Width Approx:
- 19.05mm = 3/4 inch
- Belt Depth Approx:
- 4.3mm
- Belt Length Approx:
- 685.8mm = 27 inch
- Number of Teeth:
- 54
Technical
Technical
| Belt width | 0.75 inch = 19.05mm |
|---|---|
| Pitch length | 27 inch = 685.8mm |
| Number of teeth | 54 |
| Tooth pitch t | 0.5 inch |
| Flank angle f | 40 degrees |
| Tooth height h<sub>t</sub> | 0.09015748 inch |
| Pitch zone u | 0.027007874 inch |
